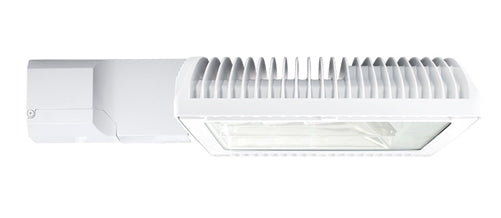

RAB ALED3T78NW LED 78W Type III Area Lights, Pole Mount, 4000K (Neutral), 5890 Lumens, 82 CRI, Standard Operation, DLC Listed, White Finish

RAB ALED3T78NW LED 78W Type III Area Lights, Pole Mount, 4000K (Neutral), 5890 Lumens, 82 CRI, Standard Operation, DLC Listed, White Finish

Price: $780.64
Price: $780.64

MODEL: RAB-ALED3T78NW
Add To Wishlist
free shiping details >>
Request a Quote
Ordering a large quantity? Request a quote
Find your items based on model numbers and product specification. Photo might not represent the actual item or color. Often times, photo is used as a representation of a product family
View full details

description

Features & Benefits

  • High Output LED Light Engine
  • Maintains 70% of initial lumens at 50,000 hours
  • Weatherproof high temperature silicone gaskets
  • Superior Heat Sinking with Die Cast Aluminum Housing and External Fins

Model # ALED3T78NW
Specification Grade Optics The Type III distribution is ideal for roadway, general parking, and other area lighting applications where a larger pool of lighting is required. It is intended to be located near the side of the area, allowing the light to project outward and fill the area.
LEDs Six (6) multi-chip, 13W, high-output, long-life LEDs
Drivers Three drivers, constant current, Class 2, 100 - 277V, 50 - 60 Hz, 100 - 277VAC .04 Amps.
Housing Die cast aluminum housing, lens frame and mounting arm.
Gaskets High temperature silicone gaskets.
Finish Chip and fade resistant polyester powder coat finish.
Reflector Specular aluminum.
Green Technology ALEDs are Mercury and UV free.
IESNA LM-79 & IESNA LM-80 Testing RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and 80, and have received the Department of Energy "Lighting Facts" label.
Color Stability RAB LEDs exceed industry standards for chromatic stability.
Color Uniformity RAB's range of CCT (Correlated color temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2008.
Ambient Temperature Suitable for use in 40C ambient temperatures.
Cold Weather Starting The minimum starting temperature is -40F/-40C
Fixture Efficacy 41 Lumens per Watt
Color Accuracy 88 CRI
Color Temperature 4100 K
Heatsink Superior heat sinking with external Air-Flow fins.
California Title 24 ALED78 complies with California Title 24 building and electrical codes.
Patents The ALED design is protected by patents pending in the U.S., Canada, China, Taiwan and Mexico.
HID Replacement Range The ALED78 replaces 250W Metal Halide Area Lights.
For use on LEED Buildings IDA Dark Sky Approval means that this fixture can be used to achieve LEED Credits for Light Pollution Reduction
UL Listing Suitable for wet locations as a downlight.
Warranty LED fixtures give you peace of mind because both the fixture and light engine components are backed by RAB's 5 Year Warranty.
