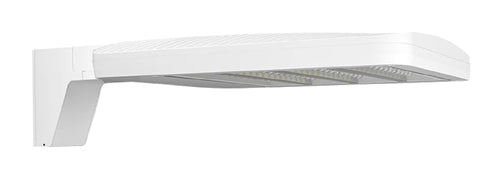

RAB ALEDM3TW LED Area Light with Wall Mount box, 150W Type III Light Distribution, 5000K (Cool), 10603/12617/1919 lumens, 82 CRI, White Finish

Field adjustable light output in 3 discrete steps: Medium Housing: 150W/90W/78W (factory default 150W)

Suitable for wet locations

Ingress protection rating of IP66 for dust and water

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements; DLC Product Code: S-53X76G

Long-life, high-efficacy, discrete, surface-mount LEDs

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

78W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.65A, 208V: 0.38A, 240V: 0.33A, 277V: 0.29A

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

3.59% at 120V, 8% at 277V

100% at 120V, 95.7% at 277V

Line to Line: 10kV; Line to Ground: 6kV

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Equivalent to 400W Metal Halide

The Type III distribution is meant to be located near the side of an area, projecting the light outward to fill the area. Ideal for roadways, general parking areas, lighting applications and where a large pool of light is required.

The minimum starting temperature is -40°C (-40°F)

Suitable for use in up to 40°C (104°F)

Die-cast aluminum

Universal mounting arm compatible for hole spacing patterns from 1" to 5 1/2" center to center. Round Pole Adaptor plate included as a standard. Easy slide and lock to mount fixture with ease.

Polycarbonate lens

Aluminum reflector with white polycarbonate

3G vibration rating per ANSI C136.31

EPA = 0.34

High-temperature silicone gaskets

Formulated for high durability and long-lasting color

Mercury and UV free. RoHS-compliant components.

10 Years Limited Warranty

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
