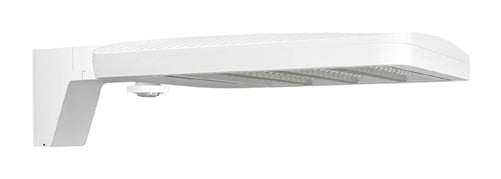

RAB ALEDM3TW/WS2 LED Area Light with Wall Mount box, 150W Type III Light Distribution, 5000K (Cool), 10603/12617/1919 lumens, 82 CRI, Multi Level Motion Sensor, White Finish

Field adjustable light output in 3 discrete steps:

Suitable for wet locations

Ingress protection rating of IP66 for dust and water

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.

Long-life, high-efficacy, discrete, surface-mount LEDs

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

78W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.65A, 208V: 0.38A, 240V: 0.33A, 277V: 0.29A

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

3.59% at 120V, 8% at 277V

100% at 120V, 95.7% at 277V

Line to Line: 10kV

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Equivalent to 400W Metal Halide

The Type III distribution is meant to be located near the side of an area, projecting the light outward to fill the area. Ideal for roadways, general parking areas, lighting applications and where a large pool of light is required.

The minimum starting temperature is -40°C (-40°F)

Max Power Temp Rating: 40°C (104°F)

Die-cast aluminum

Polycarbonate lens

Aluminum reflector with white polycarbonate

3G vibration rating per ANSI C136.31

1 Fixture: 0.37

High-temperature silicone gaskets

Formulated for high durability and long-lasting color

Mercury and UV free. RoHS-compliant components.

Universal mounting arm compatible for hole spacing patterns from 1" to 3" center to center. Round Pole Adaptor plate included as a standard. Easy slide and lock to mount fixture with ease.

/WS2 sensor options use state-of-the-art surface mount technology (SMT), just like cellular phones and beepers. SMT gives you more reliability, greater RF
immunity. This compact sensor that can fit neatly where others cannot. This sensor technology automatically affects the state of operation for lighting systems or individual luminaries based upon detecting the presence or absence of movement for both people as they exit/enter, or for the motion of moving vehicles within the sensors viewing area. The wide 180° viewing angle can detect movement along the entire side of a building with only one compact sensor. The hard lens is molded as part of the case, vandalproof, rainproof, bugproof and absolutely sealed. Sensor functions best when movement is across its detection pattern, not towards the sensor.

Adjust settings using handheld wireless configuration tool (catalog# WSREM). Only available with 0-10V dimming driver options. Handheld wireless configuration tool available here.

150W: B2 U0 G3

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
