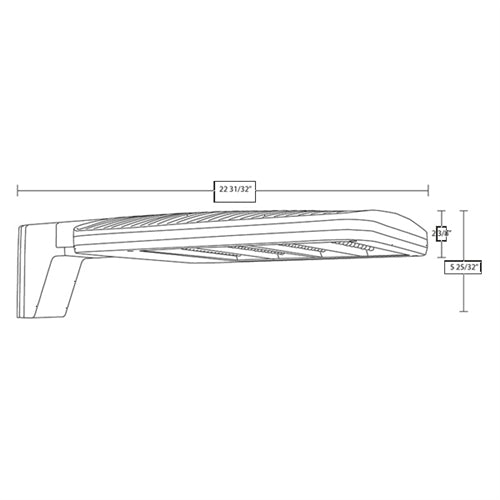

RAB ALEDM4TN LED Area Light with Universal Pole Mount, 78W/90W/150W Type IV Light Distribution, 4000K, 10610/12625/19204 Lumens, 85 CRI, Bronze Finish
RAB ALEDM4TN LED Area Light with Universal Pole Mount, 78W/90W/150W Type IV Light Distribution, 4000K, 10610/12625/19204 Lumens, 85 CRI, Bronze Finish
Regular price
Price:
$947.38
Regular price
Price:
Sale price
$947.38
Unit price
per
Ordering a Large Quantity?
Request a quote
description
| Field Adjustability | |
|
Field Adjustable
(Wattage)
|
Field adjustable light
output in 3 discrete steps:
|
| Medium Housing: 150W/90W/78W (factory default 150W) | |
|
Compliance
|
|
|
UL Listed
|
Suitable for wet
locations
|
|
IP Rating
|
Ingress protection rating
of IP66 for dust and water
|
|
|
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80. |
|
Trade Agreements Act
Compliant
|
This product is a product
of Cambodia and a "designated country" end product that complies
with the Trade Agreements Act
|
|
DLC Listed
|
This product family is
listed with the DesignLights Consortium (DLC). Individual SKUs within this
family may carry either a DLC Standard or DLC Premium qualification. Please
refer to the individual product specification sheet or the DLC Qualified
Products List (QPL) at designlights.org to confirm the
qualification status of a specific SKU prior to specification or purchase.
|
|
LED
Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy,
discrete, surface-mount LEDs
|
|
Color Consistency
|
7-step MacAdam Ellipse
binning to achieve consistent fixture-to-fixture color
|
|
Color Stability
|
LED color temperature is
warrantied to Shift no more than 200K in color temperature over a 5-year
period
|
|
Color Uniformity
|
RAB's range of Correlated
Color Temperature follows the guidelines of the American National Standard
for (SSL) Products, ANSI C78.377-2017.
|
|
Electrical
|
|
|
Driver
|
78W: Constant Current,
Class 2, 120-277V, 50/60 Hz, 120V: 0.65A, 208V: 0.38A, 240V: 0.33A, 277V:
0.29A
|
| 90W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.75A, 208V: 0.44A, 240V: 0.38A, 277V: 0.33A | |
| 150W: Constant Current, Non-Class 2, 120-277V, 50/60 Hz, 120V: 1.25A, 208V: 0.73A, 240V: 0.63A, 277V: 0.55A | |
|
Dimming Driver
|
Driver includes dimming
control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming
circuit. Dims down to 10%.
|
|
THD
|
3.45% at 120V, 8.26% at
277V
|
|
Power Factor
|
100% at 120V, 95.6% at
277V
|
|
Surge Protection
|
Line to Line: 10 kV
|
| Line to Ground: 6 kV | |
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan
based on IESlm-80 results and TM-21 calculations
|
|
Wattage Equivalency
|
Equivalent to 400W Metal
Halide
|
|
Optical
|
|
|
IES Classification
|
The Type IV distribution
is especially suited for mounting on the sides of buildings and walls, and
for illuminating the perimeter of parking areas. It produces a semicircular
distribution with essentially the same candlepower at lateral angles from 90°
to 270°.
|
|
Bug Rating
|
150W: B2 U0 G4
|
| 90W: B1 U0 G3 | |
| 78W: B1 U0 G3 | |
|
Construction
|
|
|
Cold Weather Starting
|
The minimum starting
temperature is -40°F (-40°C)
|
|
Ambient Temperature
|
Max Power Temp Rating:
104°F (40°C )
|
| Middle Power Temp Rating: 52°C (125°F) | |
| Low Power Temp Rating: 54°C (130°F) | |
|
Housing
|
Die-cast aluminum
|
|
Lens
|
Polycarbonate lens
|
|
Reflector
|
Aluminum reflector with
white polycarbonate
|
|
Vibration Rating
|
3G vibration rating per
ANSI C136.31
|
|
Effective Projected Area
(EPA)
|
1 Fixture: 0.37
|
| 2 Fixtures at 90°: 0.59 | |
| 2 Fixtures at 180°: 0.74 | |
| 3 Fixtures at 90°: 0.96 | |
| 4 Fixtures at 90°: 0.96 | |
|
Gaskets
|
High-temperature silicone
gaskets
|
|
Finish
|
Formulated for high
durability and long-lasting color
|
|
Green Technology
|
Mercury and UV free.
RoHS-compliant components.
|
|
Installation
|
|
|
Mounting
|
Universal mounting arm
compatible for hole spacing patterns from 1" to 3" center to
center. Round Pole adapter plate included as a standard. Easy slide and lock
to mount fixture with ease.
|
|
Other
|
|
|
10-Year, No-Compromise
Warranty
|
RAB warrants that our LED
products will be free from defects in materials and workmanship for a period
of ten (10) years from the date of delivery to the end user, including
coverage of light output, color stability, driver performance and fixture
finish. RAB's warranty is subject to all terms and conditions found
at rablighting.com/warranty.
|
