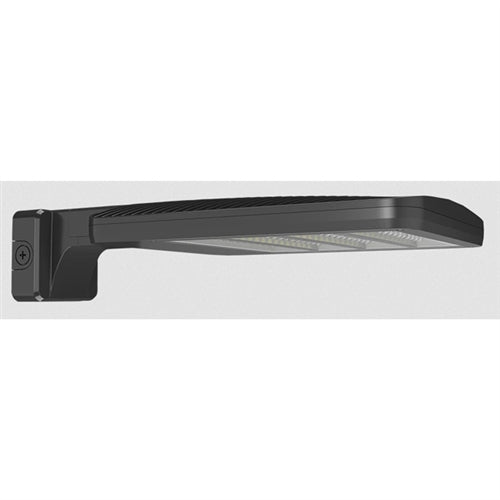

RAB ALEDM4TWM LED Area Light with Wall Mount box, 78W/90W/150W Type IV Light Distribution, 4000K (Neutral), 10610/12625/19204 lumens, 85 CRI, Bronze Finish
RAB ALEDM4TWM LED Area Light with Wall Mount box, 78W/90W/150W Type IV Light Distribution, 4000K (Neutral), 10610/12625/19204 lumens, 85 CRI, Bronze Finish
Regular price
Price:
$885.00
Regular price
Price:
Sale price
$885.00
Unit price
per
MODEL: RAB-ALEDM4TWM
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a Large Quantity?
Request a quote
description
| Performance | |
| Lifespan: | 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations |
| Wattage Equivalency: | Equivalent to 400W Metal Halide |
| Construction | |
| IES Classification: | The Type IV distribution is especially suited for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas. It produces a semicircular distribution with essentially the same candlepower at lateral angles from 90° to 270°. |
| Cold Weather Starting: | The minimum starting temperature is -40°C (-40°F) |
| Ambient Temperature: | Suitable for use in up to 40°C (104°F) |
| Housing: | Die-cast aluminum |
| Mounting: | Universal mounting arm compatible for hole spacing patterns from 1" to 5 1/2" center to center. Round Pole Adaptor plate included as a standard. Easy slide and lock to mount fixture with ease. |
| Lens: | Polycarbonate lens |
| Reflector: | Aluminum reflector with white polycarbonate |
| Vibration Rating: | 3G vibration rating per ANSI C136.31 |
| Effective Projected Area: | EPA = 0.34 |
| Gaskets: | High-temperature silicone gaskets |
| Finish: | Formulated for high durability and long-lasting color |
| Green Technology: | Mercury and UV free. RoHS-compliant components. |
| Optical | |
| Bug Rating: | BUG Rating 150W: B2 U0 G4 BUG Rating 90W: B1 U0 G3 BUG Rating 78W: B1 U0 G3 |
| Other | |
| Warranty: | 10 years limited warranty |
