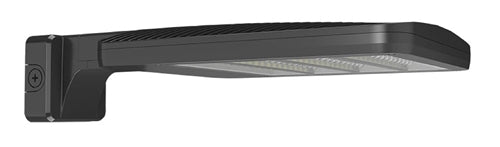

RAB ALEDM4TWM/7PR LED Area Light with Wall Mount box, 150W Type IV Light Distribution, 5000K (Cool), 10610/12625/19204 lumens, 82 CRI, Bronze Finish

Suitable for wet locations

Ingress protection rating of IP66 for dust and water

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements. DLC Product Code: S-AH0R16

Long-life, high-efficacy, discrete, surface-mount LEDs

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

3.67% at 120V, 8.03% at 277V

100% at 120V, 95.7% at 277V

ANSI C136.41 7-pin receptacle, compatible with wireless control systems

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Equivalent to 400W Metal Halide

The Type IV distribution is especially suited for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas. It produces a semicircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.

The minimum starting temperature is -40°C (-40°F)

Suitable for use in up to 40°C (104°F)

Die-cast aluminum

Polycarbonate lens

Aluminum reflector with white polycarbonate

3G vibration rating per ANSI C136.31

EPA = 0.35

High-temperature silicone gaskets

Formulated for high durability and long-lasting color

Mercury and UV free. RoHS-compliant components.

Wall mount

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of ten (10) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish.
