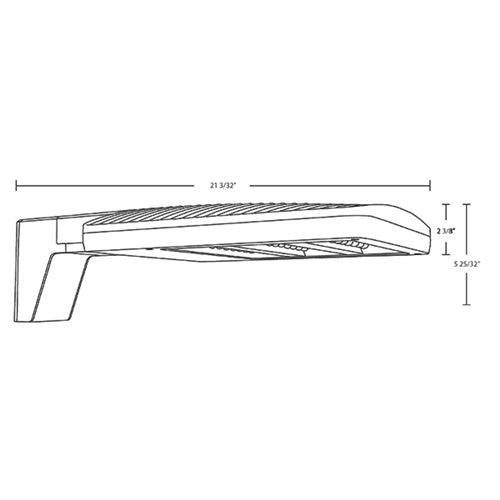

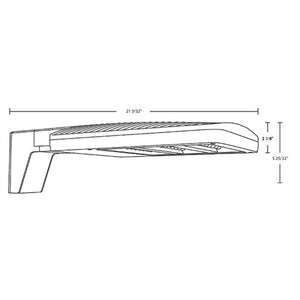

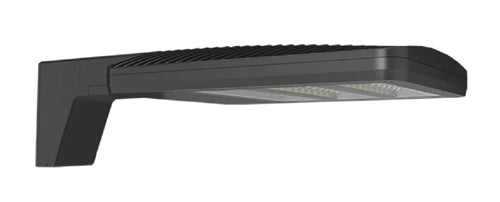

RAB ALEDS3T 80W LED Area Light, Type III Distribution, Universal Mount , 5719/7951/10742 lumens, 5000K Color Temperature, 120-277V, 0-10V Dimming, Bronze

Field adjustable light output in 3 discrete steps:

Suitable for wet locations

Ingress protection rating of IP66 for dust and water

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.

Long-life, high-efficacy, discrete, surface-mount LEDs

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

40W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.34A, 208V: 0.20A, 240V: 0.17A, 277V: 0.15A

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

1.96% at 120V, 7.7% at 277V

99.9% at 120V, 96.5% at 277V

Line to Line: 10kV

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Equivalent to 250W Metal Halide

The Type III distribution is meant to be located near the side of an area, projecting the light outward to fill the area. Ideal for roadways, general parking areas, lighting applications and where a large pool of light is required.

The minimum starting temperature is -40°C (-40°F)

Max Power Temp Rating: 40°C (104°F)

Die-cast aluminum

Aluminum reflector with white polycarbonate

3G vibration rating per ANSI C136.31

1 Fixture: 0.35

High-temperature silicone gaskets

Formulated for high durability and long-lasting color

Mercury and UV free. RoHS-compliant components.

Universal mounting arm compatible for hole spacing patterns from 1" to 3" center to center. Round Pole Adaptor plate included as a standard. Easy slide and lock to mount fixture with ease.

80W: B1 U0 G2
