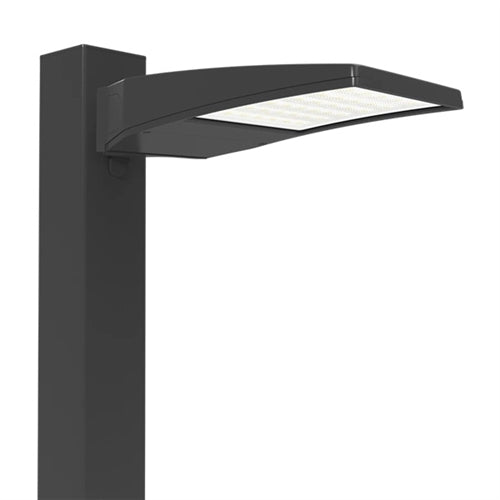

RAB ALEDXS Small LED Field Adjustable Area Light, 32/24/16W, 3000/4000/5000K, 2020-4151 lumens, 82 CRI, Bronze Finish

Suitable for wet locations

32W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V: 0.26A, 208V: 0.16A, 240V: 0.14A, 277V: 0.12A

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

6.58% at 120V, 11.18% at 277V

99.5% at 120V, 92.3% at 277V

Integrated photocell included with on/off switch

L-L 2kV; L-G 4kV

Yes

Yes

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

32W: B1 U0 G1

Long-life, high-efficacy, surface-mount LEDs

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Allows for conformance to the IDA's fully shielding requirement, emitting no light above 90 degrees.

Die-cast aluminum

Acrylic lens

High reflection polycarbonate

The minimum starting temperature is -40°C (-40°F)

Suitable for use in up to 40°C (104°F)

Mercury and UV free. RoHS-compliant components.

Formulated for high durability and long-lasting color

Integrated j-box and an optional wall plate included.

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
