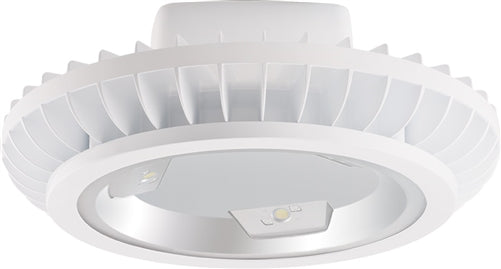

RAB BAYLED104W 104W High Bay BAYLED, 5100K Color Temperature (Cool), Standard Operation, White Finish

Description

104W LED high bay fixture with over 10,000 lumens. Reduces energy consumption by up to 70%. Ideal for large spaces, including warehouses, gymnasiums, and distribution centers.

Features and Benefits

• High output, high efficiency LED high bay
• Bi-level and dimming models available when installed with pendant by others
• Polyshield and wire guard accessories available for additional protection
• 100,000 hour lifespan
• 5-year no compromise warranty

• UL Listing:
  Suitable for damp locations with cord and hook. Suitable for wet locations with 3/4" pendant stem.
• IESNA LM-79 & LM-80 Testing:
  RAB LED luminaries have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.
• DLC Listed:
  This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.

• LEDs:
  Multi-chip, high-output, long-life LEDs
• Lifespan:
  100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• Color Consistency:
  3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability:
  LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
• Color Uniformity:
  RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2011.

• Drivers:
  Constant Current, 800mA, Class 2 with 6 kV surge protection, 100-277VAC, 50/60 Hz
• Power Factor:
  99.5% at 120V, 91.1% at 277V
• THD:
  8.2% at 120V, 11.3% at 277V

• Ambient Temperature:
  Suitable for use in 55°C (131°F)
• Thermal Management:
  Superior heat sinking with external Air-Flow fins
• Housing:
  Precision die-cast aluminum housing and door frame with 3-foot 600V power cord
• Mounting:
  Heavy-duty 3/4" NPS hook and 3-foot safety chain; is also 3/4" pendant mount-capable (pendant not included).
• Recommended Mounting Height:
  30 ft.
• Lens:
  Tempered glass
• Reflector:
  Specular vacuum metallized polycarbonate
• Gaskets:
  High-temperature silicone
• Finish:
  Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contain no VOC or toxic heavy metals.
• Green Technology:
  Mercury and UV free, and RoHS compliant. Polyester powder coat finish formulated without the use of VOC or toxic heavy metals.

• Equivalency:
  BAYLED104W replaces 320 Watt metal halide.
• California Title 24:
  See BAYLED104W/BL or BAYLED104W/D10 for a 2013 California Title 24 compliant product. Any additional component requirements will be listed in the Title 24 section under technical specifications on the product page.
• Country of Origin:
  Designed by RAB in New Jersey and assembled in the USA by RAB's IBEW Local 3 workers.
• Buy American Act Compliant:
  This product is a COTS item manufactured in the United States, and is compliant with the Buy American Act.
• Recovery Act (ARRA) Compliant:
  This product complies with the 52.225-21 "Required Use of American Iron, Steel, and Manufactured Goods-- Buy American Act-- Construction Materials (October 2010).
• Trade Agreements Act Compliant:
  This product is a COTS item manufactured in the United States, and is compliant with the Trade Agreements Act.
• GSA Schedule:
  Suitable in accordance with FAR Subpart 25.4.
