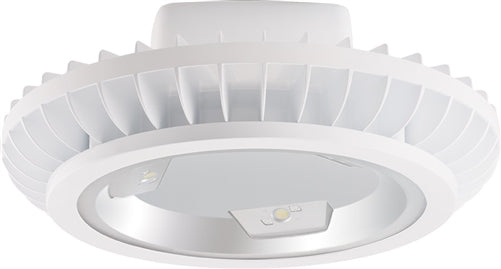

RAB BAYLED104YW/BL 104W High Bay BAYLED, 3000K Color Temperature (Warm), Bi-Level Operation, White Finish

Description

104W LED high bay fixture with over 10,000 lumens. Reduces energy consumption by up to 70%. Ideal for large spaces, including warehouses, gymnasiums, and distribution centers.

Features and Benefits

• High output, high efficiency LED high bay
• Bi-level and dimming models available when installed with pendant by others
• Polyshield and wire guard accsesories available for additional protection
• 100,000 hour lifespan
• 5-year no compromise warranty

• UL Listing:
  Suitable for damp locations with cord and hook. Suitable for wet locations with 3/4" pendant stem.
• IESNA LM-79 & LM-80 Testing:
  RAB LED luminaries have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.
• DLC Listed:
  This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.

• LEDs:
  Multi-chip, high-output, long-life LEDs
• Lifespan:
  100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• Color Consistency:
  3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability:
  LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
• Color Uniformity:
  RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2011.

• Drivers:
  Constant Current, 800mA, Class 2 with 6 kV surge protection, 100-277VAC, 50/60 Hz
• Power Factor:
  99.5% at 120V, 91.1% at 277V
• THD:
  8.2% at 120V, 11.3% at 277V

• Ambient Temperature:
  Suitable for use in 55°C (131°F)
• Thermal Management:
  Superior heat sinking with external Air-Flow fins
• Housing:
  Precision die-cast aluminum housing and door frame with 3-foot 600V power cord
• Mounting:
  Heavy-duty 3/4" NPS hook and 3-foot safety chain; is also 3/4" pendant mount-capable (pendant not included).
• Recommended Mounting Height:
  30 ft.
• Lens:
  Tempered glass
• Reflector:
  Specular vacuum metallized polycarbonate
• Gaskets:
  High-temperature silicone
• Finish:
  Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contain no VOC or toxic heavy metals.
• Green Technology:
  Mercury and UV free, and RoHS compliant. Polyester powder coat finish formulated without the use of VOC or toxic heavy metals.

• BAYLED104 with Bi-Level Operation:
  Allows 50% and 100% output modes.
• Equivalency:
  BAYLED104W replaces 320 Watt metal halide.
• California Title 24:
  BAYLED104NW/BL complies with 2013 California Title 24 building and electrical codes as a commercial indoor fixture for corridors, stairwells, warehouses and covered parking garages when used with an occupancy sensor. Select an occupancy sensor using catalog number LOSBAY800.
• Country of Origin:
  Designed by RAB in New Jersey and assembled in the USA by RAB's IBEW Local 3 workers.
• Buy American Act Compliant:
  This product is a COTS item manufactured in the United States, and is compliant with the Buy American Act.
• Recovery Act (ARRA) Compliant:
  This product complies with the 52.225-21 "Required Use of American Iron, Steel, and Manufactured Goods-- Buy American Act-- Construction Materials (October 2010).
• Trade Agreements Act Compliant:
  This product is a COTS item manufactured in the United States, and is compliant with the Trade Agreements Act.
• GSA Schedule:
  Suitable in accordance with FAR Subpart 25.4.
