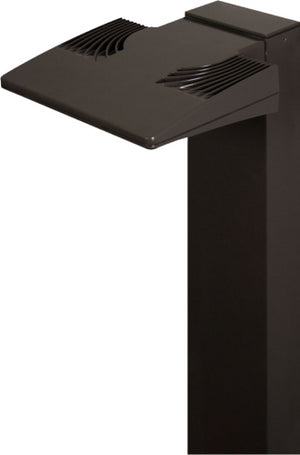

RAB BLED2X20Y Bollard 40W LED Lamp, Yellow Light 120V-240V Bronze Color
RAB BLED2X20Y Bollard 40W LED Lamp, Yellow Light 120V-240V Bronze Color
Regular price
Price:
$628.32
Regular price
Price:
Sale price
$628.32
Unit price
per
Ordering a large quantity?Request a quote
Find your items based on model numbers and product specification. Photo might not represent the actual item or color. Often times, photo is used as a representation of a product family
description
Description
42" high rectangular Bollard with 2 LED fixtures for low level lighting applications. Great for pathway lighting! Lasts 50,000 hours. Meet IESNA Full Cutoff, Fully Shielded classification. 5 year warranty. LED Light Engine included.
Features & Benefits
- High output LED Light Engine equals the ground footcandle level of a 35 watt HID
- Maintains 70% of its initial lumens at 50,000 hours
- Weatherproof high temperature silicone gaskets
- Thick mounting pad dissipates heat from LED
- High Output LED Light Engine available in cool or warm light
- Insulating pad to eliminate contact between the LED and the reflector
- Anodized reflector
- Die cast aluminum lens frame with tempered glass and double gasketing
| Model # | BLED2X20Y |
| UL Listing | Suitable for wet locations. Suitable for mounting within 4' of the ground. |
| Warranty | RAB LED fixtures give you peace of mind because both the fixture and light engine components are backed by RAB's 5 Year Warranty |
| LED Light Engine | Multi-chip 10W high output long life LED Driver: Constant Current, Class II, 120V-240V, 50/6/ Hz, 350mA |
| Heatsink | Cast aluminum thermal management system for optimal heat sinking. The BLED is designed for cool operation, most efficient output and maximum LED life by minimizing LED junction temperature. |
| Lumen Maintenance | The LED will deliver 70% of its initial lumens at 50,000 hours of operation. |
| Housing | Precision die cast aluminum housing, lens frame. |
| Mounting | 42" Bollard. |
| Gaskets | High temperature silicone. |
| Finish | White or Bronze chip and fade resistant polyester powder coat finish. |
| California Title 24/TD> | BLED complies with California Title 24 building and electrical codes. |
| Green Technology | BLEDs are Mercury and UV free. |
| IESNA LM-79 | LED luminaires comply with the IESNA LM-79 testing procedure, which measures performance qualities of LED luminaires to allow for a true comparison of luminaires regardless of the light source. |
| Driver Reliability | MIL Spec 217F results based on UL certified testing lab results in 122F ambient temperatures indicate mean time between failures of greater than 200,000 hrs |
| Total Harmonic Distortion | THD = 8.1% |
| IESNA LM-79 & IESNA LM-80 Testing | RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and 80, and have received the Department of Energy "Lighting Facts" label. |
| Patents | The BLED2X20Y RCL design is protected under patents pending in Canada, U.S., China, Taiwan and Mexico. |
Download PDF specification Share your knowledge of this product. Be the first to write a review »
