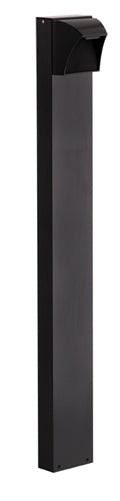

RAB BLED5DC-42 5W LED Square Bollard, One BLED, 5000K Color Temperature (Cool), 68 CRI, 42" Mounting Height, Bronze Finish
RAB BLED5DC-42 5W LED Square Bollard, One BLED, 5000K Color Temperature (Cool), 68 CRI, 42" Mounting Height, Bronze Finish
Regular price
Price:
$295.12
Regular price
Price:
Sale price
$295.12
Unit price
per
Ordering a large quantity?Request a quote
description
Listings
-
UL Listing:
Suitable for wet locations. -
IESNA LM-79 & IESNA LM-80 Testing:
RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and 80, and have received the Department of Energy "Lighting Facts" label.
-
Max Watts:
Max Watts = 4.5W, Input Volts = 10-30V DC, Input Amps = 0.45 Í—åÍ__„ŽÍ—0.15A. -
Driver:
Multi-chip 5W high output long life LED Driver Constant Current, Class II, 120V-240V, 50/60 Hz, 400mA.
-
Lifespan:
100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations. -
Color Temperature (Nominal CCT):
5000K -
Color Accuracy:
68 CRI -
Color Consistency:
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color. -
Color Stability:
LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period. -
Color Uniformity:
RAB's range of CCT (Correlated color temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2008.
-
Equivalency:
The BLED5 is Equivalent in delivered lumens to a 13W CFL or 60W Incandescent Bollard. -
HID Replacement Range:
The BLED5 can be used to replace 13-26W CFL or 13-60W Incandescent Bollards based on delivered lumens. -
Warranty:
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. -
Country of Origin:
Designed by RAB in New Jersey and assembled in the USA by RAB's IBEW Local 3 workers. -
Buy American Act Compliant:
This product is a COTS item manufactured in the United States, and is compliant with the Buy American Act. -
Recovery Act (ARRA) Compliant:
This product complies with the 52.225-21 "Required Use of American Iron, Steel, and Manufactured Goods-- Buy American Act-- Construction Materials (October 2010). -
Trade Agreements Act Compliant:
This product is a COTS item manufactured in the United States, and is compliant with the Trade Agreements Act. -
GSA Schedule:
Suitable in accordance with FAR Subpart 25.4.
-
Thermal Management:
Cast aluminum Thermal Management system for optimal heat sinking. The BLED is designed for cool operation, most efficient output and maximum LED life by minimizing LED junction temperature. -
Housing:
Precision die cast aluminum housing, lens frame. -
Mounting:

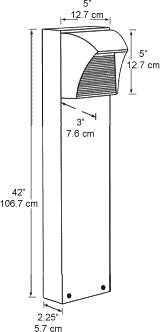

42" Bollard. -
Cold Weather Starting:
The minimum starting temperature is -40°F/-40°C. -
Ambient Temperature:
Suitable for use in 40°C (104°F) ambient temperatures. -
Gaskets:
High temperature silicone. -
Finish:
Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals. -
Anchor Bolt:
The anchor bolts for the BLED's have the following dimensions 1/2 - 13 x 12 1/4" long with 2 3/4" hook. Available online in pdf file. -
Green Technology:
BLEDs are Mercury, Arsenic and UV free.
-
Lumen Maintenance:
The LED will deliver 70% of its initial lumens at 100,000 hours of operation.
