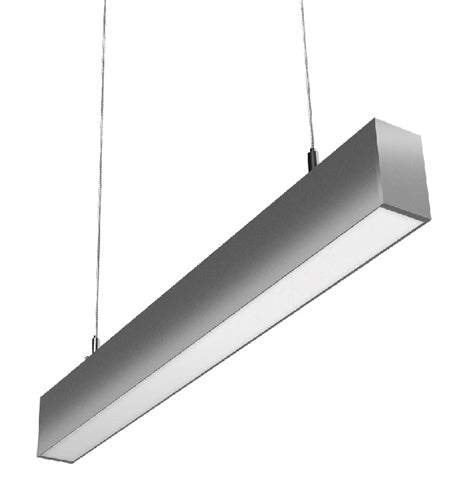

RAB BOA2PS Field Adjustable Light Output (20W default) LED 2 ft Suspended Pendant Linear Light, Color Temperature Selectable, 90 CRI, 120-277V, Dimmable, Silver Finish

Field Adjustable Light Output:

Suitable for damp locations

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.

Constant Current, Class 2, 120-277V, 50/60 Hz:

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

4.52% at 120V, 9.45% at 277V

99.6% at 120V, 92.4% at 277V

2kV

Maximum wattage for a continuous run should not exceed 600W

Long-life, high-efficacy, surface-mount LEDs

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

20W: Replaces up to (1) F32T8 or (3) F17T8

The minimum starting temperature is -20°C (-4°F)

Suitable for use in up to 40°C (104°F)

Aluminum

94" of aircraft cable provided with cable grippers for easy adjustment after installation

Polycarbonate frosted flat lens

Polyethylene Terephthalate (PET)

Formulated for high durability and long-lasting color

Mercury and UV free. RoHS-compliant components.

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
