Home > RAB Lighting > RAB BRISKM32L-740 22W Brisk Medium LED Wallpack, 3200 Lumens, 70 CRI, 4000K Color Temperature, 120-277V, Bronze Finish

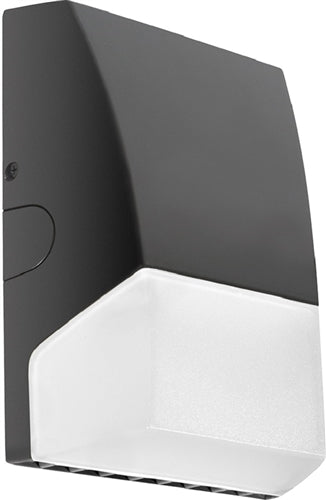

RAB BRISKM32L-740 22W Brisk Medium LED Wallpack, 3200 Lumens, 70 CRI, 4000K Color Temperature, 120-277V, Bronze Finish
RAB BRISKM32L-740 22W Brisk Medium LED Wallpack, 3200 Lumens, 70 CRI, 4000K Color Temperature, 120-277V, Bronze Finish
Regular price
Price:
$174.08
Regular price
Price:
Sale price
$174.08
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
Listings
Listings
UL Listed:
Suitable for wet locations
Suitable for wet locations
IESNA LM-79 & LM-80 Testing:
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed:
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: PLZJZXQS
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: PLZJZXQS
LED Characteristics
Lifespan:
60,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
LEDs:
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity:
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Lifespan:
60,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
LEDs:
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity:
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Electrical
Driver:
Constant Current, Class 2, 50/60Hz, 120V: 0.19A, 208V: 0.13A, 240V: 0.11A, 277V: 0.10A
THD:
12.2% at 120V, 12% at 277V
Power Factor:
98.9% at 120V, 91.5% at 277V
Surge Protection:
4kV
Construction
IP Rating: Ingress Protection rating of IP66 for dust and water
Maximum Ambient Temperature:
Suitable for use in 40°C (104°F)
Cold Weather Starting:
The minimum starting temperature is -30°C (-22°F)
Housing:
Precision die-cast aluminum
Driver:
Constant Current, Class 2, 50/60Hz, 120V: 0.19A, 208V: 0.13A, 240V: 0.11A, 277V: 0.10A
THD:
12.2% at 120V, 12% at 277V
Power Factor:
98.9% at 120V, 91.5% at 277V
Surge Protection:
4kV
Construction
IP Rating: Ingress Protection rating of IP66 for dust and water
Maximum Ambient Temperature:
Suitable for use in 40°C (104°F)
Cold Weather Starting:
The minimum starting temperature is -30°C (-22°F)
Housing:
Precision die-cast aluminum
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
