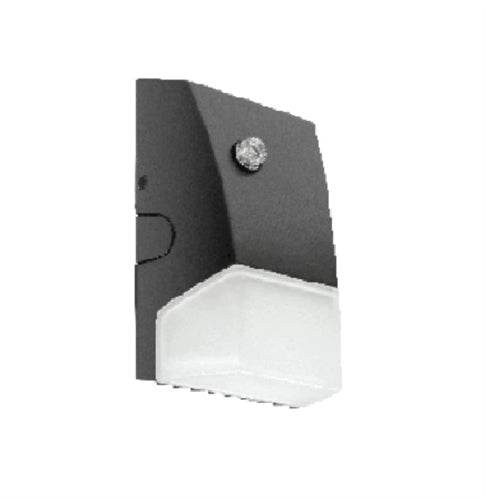

RAB BRISKS17L-730/PCU 13W LED Wallpack, 1700 Lumens, 70CRI, 3000K, Warm, 120-277V, Photocell, Bronze

Suitable for wet locations

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

60,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Long-life, high-efficacy, surface-mount LEDs

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Constant Current, Class 2, 50/60Hz, 120V: 0.11A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A

11.3% at 120V, 17.8% at 277V

99.3% at 120V, 90.9% at 277V

2.5kV

Photocell

120-277V Button Photocell Included. Photocell is compatible with 120V-277V.

Ingress Protection rating of IP66 for dust and water

Suitable for use in up to 40°C (104°F)

The minimum starting temperature is -30°C (-22°F)

Precision die-cast aluminum

Specular

Diffused acrylic

Heavy duty, die-cast junction box with four (4) conduit entries (one top, two side, one back)

Silicone foam

Formulated for high durability and long-lasting color

Mercury and UV free. RoHS-compliant components.

B0 U3 G2

Equivalent to 70W Metal Halide/50W HPS

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Replaces 100A/IF incandescent Inside Frost, 100W T5 Halogen incandescent or 26W CFL

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.

DLC Product Code: PIKC3N2S
