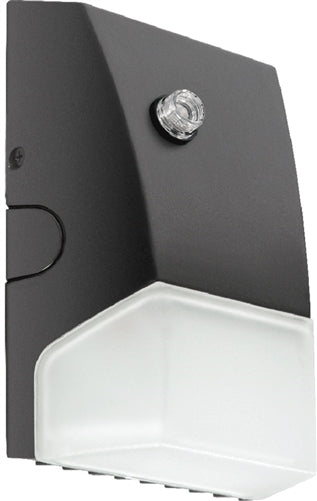

RAB BRISKS17L/PCU 13W LED Wallpack, 1700 Lumens, 70CRI, 5000K, Cool, 120-277V, Photocell, Bronze
RAB BRISKS17L/PCU 13W LED Wallpack, 1700 Lumens, 70CRI, 5000K, Cool, 120-277V, Photocell, Bronze
Regular price
Price:
$184.96
Regular price
Price:
Sale price
$184.96
Unit price
per
Ordering a large quantity?
Request a quote
description
Listings
UL Listed: Suitable for wet locations
IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product
Code: PIKC3N2S
LED Characteristics
Lifespan: 60,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
LEDs: Long-life, high-efficacy surface-mount LEDs=
Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
UL Listed: Suitable for wet locations
IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product
Code: PIKC3N2S
LED Characteristics
Lifespan: 60,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
LEDs: Long-life, high-efficacy surface-mount LEDs=
Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Electrical
Driver: Constant Current, Class 2, 50/60Hz, 120V: 0.11A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A
THD: 11.3% at 120V, 17.8% at 277V
Power Factor: 99.3% at 120V, 90.9% at 277V
Surge Protection: 2.5kV
Photocell: 120-277V Button Photocell Included. Photocell is compatible with 120V-277V.
Construction
IP Rating: Ingress Protection rating of IP66 for dust and water
Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
Cold Weather Starting: The minimum starting temperature is -30°C (-22°F)
Housing: Precision die-cast aluminum
Reflector: Specular
Lens: Diffused acrylic
Mounting: Heavy duty, die-cast junction box with four (4) conduit entries (one top, two side, one back)
Gasket: Silicone foam
Finish: Formulated for high durability and long-lasting color
Green Technology: Mercury and UV free. RoHS-compliant components.
Optical
BUG Rating: B0 U3 G2
Other
5 Yr Limited Warranty: The RAB 5-year, limited warranty covers light output, driver performance and paint finish.
Replacement: Replaces 100A/IF incandescent Inside Frost, 100W T5 Halogen incandescent or 26W CFL
Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact us to request a quote for the product to be made BAA compliant.
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
