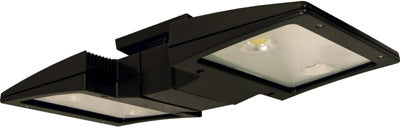

RAB CLED2X20 2X20W LED Ceiling Light, 5000K Color Temperature (Cool), Bronze Finish

Description

40 Watts of energy efficient ceiling mounted LED lighting. 100,000-hour LED lifespan. 5 year warranty. Flush mount fixture bracket. LED Light Engine included.

Features and Benefits

• Flush mount fixture bracket
• Die cast aluminum lens frame with tempered glass and double gasketing
• Fully Shielded, Full Cutoff Optics
• LED Light Engine life delivers 70% of rated lumens at 100,000 hours
• Great for parking garages, canopies, stairwells and entrance ways
• LM-70 and LM-80 tested
• 5-year warranty

• UL Listing:
  Suitable for wet locations.
• IESNA LM-79 & IESNA LM-80 Testing:
  RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and 80.

• Lifespan:
  100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• Color Consistency:
  7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
• Color Stability:
  LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
• Color Uniformity:
  RAB's range of CCT (Correlated color temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2008.
• Color Accuracy:
  69 CRI
• Color Temperature (Nominal CCT):
  5000K

• Driver:
  Two Multi-chip 10W high output long life LED Driver Constant Current, Class 2
• THD:
  6.5% at 120V
• Driver:
  Automatic Voltage Sensing Driver for 120-277 volts.

• Thermal Management:
  Cast aluminum Thermal Management system for optimal heat sinking. Designed for cool operation, most efficient output and maximum LED life by minimizing LED junction temperature.
• Housing:
  Precision die cast aluminum housing and lens framing.
• Finish:
  Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals.
• Green Technology:
  RAB LEDs are Mercury, Arsenic and UV free.
• Cold Weather Starting:
  The minimum starting temperature is -40°F/-40°C.
• Ambient Temperature:
  Suitable for use in 40°C (104°F) ambient temperatures.

• Lumen Maintenance:
  The LED will deliver 70% of its initial lumens at 100,000 hours of operation.
• Fixture Efficacy:
  64 Lumens per Watt

• Patents:
  The design of the CLED is protected by U.S. Pat. D634872, Canada Pat. 133206, China Pat. ZL201030129122.3, Taiwan Pat. D139372 and Mexico Pat. 32490.
• Mounting Accessory:
  Surface mounting box order separately.
• Warranty:
  RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish.
• Equivalency:
  The CLED2X20 is Equivalent in delivered lumens to a 100W Metal Halide Ceiling Fixture.
• HID Replacement Range:
  The CLED2X20 can be used to replace 100-150W Metal Halide Ceiling Lights based on delivered lumens.
