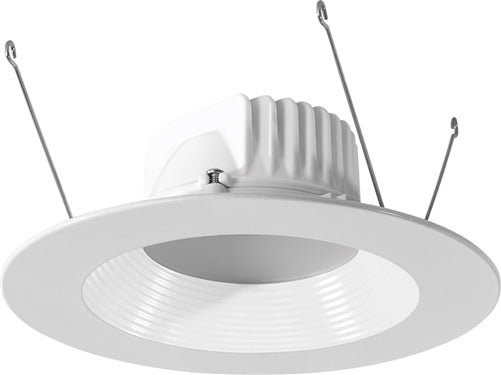

RAB DLED5R8Y/BAF 8W 5 inch LED Retrofit Downlight, 3000K (Warm), 535 Lumens, 85 CRI, With Baffle, White Finish

Description

LED retrofit downlights are perfect for updating existing recessed lighting without changing the fixture. Equivalent to 50W Par.

Features and Benefits

• Savings of up to $1500 over 100,000 hrs
• 8W replaces 50W PAR
• Dimmable down to industry-leading 5%
• Low profile design for easy fit and installation
• 100,000-Hour LED lifespan

• UL Listed:
  Suitable for damp locations.
• IESNA LM-79 & LM-80 Testing:
  RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.

• Driver:
  Innovative integrated driver technology with 120V TRIAC and ELV dimming.
• Dimmer Compatibility:

• Surge Protection:
  2.5KV

• Lens:
  Polycarbonate diffusion lens for smooth light output.
• Compatibility:
  Low-profile design for maximum compatibility with many 5" incandescent recessed downlight housings.
• Housing Compatibility:
  Juno Lighting IC20, IC20N, IC20S, IC20NW, IC20R, IC25, IC25R, IC25S, IC25W, TC20, TC20R, TC20S
• Ambient Temperature:
  Suitable for use in 40°C ambient temperatures.
• Cold Weather Starting:
  The minimum starting temperature is -22°F/-30°C.
• Adapters:
  Edison E26 medium base adapter included. GU24 socket adapter sold separately.
• Installation:
  Pre-installed Torsion springs and optional friction clips are both included to aid in attaching and securing the 5" DLED to the incandescent housing.
• Finish:
  Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals.
• Green Technology:
  Mercury and UV free, and RoHS compliant.

• Lifespan:
  100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• LEDs:
  High-output, long-life LEDs with 3 step binnning and integrated driver technology.
• Color Consistency:
  3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.

• ENERGY STAR:
  This product is ENERGY STAR qualified.
• Equivalency:
  8W replaces 50W Par.
• California Title 24:
  DLED5R8 complies with 2013 California Title 24 building and electrical codes as a commercial indoor fixture for general spaces when used with a vacancy sensor and TRIAC dimming control. Select a vacancy sensor using catalog number LVS800. TRIAC dimmer provided by others.
• Warranty:
  RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish.

• Spacing Criteria:
  0-180° (along): 1.13
