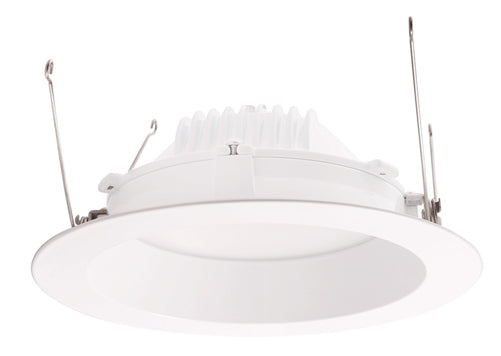

RAB DLED6R8YY 8W 6 inch LED Retrofit Downlight, 2700K, 539 Lumens, 84 CRI, Without Baffle, White Finish

Description

LED retrofit downlights are perfect for updating existing recessed lighting without changing the fixture. Equivalent to 90W Par.

Features and Benefits

• Low-profile enables compatibility with 6" housings
• UL Listed for damp locations
• Triac & ELV dimmable
• 5-year warranty

• Juno Lighting:
  IC22, IC22R, IC22W, IC22S, IC23, IC23W, IC21, IC21R, TC2, TC2R

• UL Listed:
  Suitable for damp locations.
• IESNA LM-79 & LM-80 Testing:
  RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.

• Driver:
  Innovative integrated driver technology with 120V TRIAC and ELV dimming.
• Dimmer Compatibility:

• Surge Protection:
  2.5KV

• Spacing Criteria:
  0-180° (along): 1.12

• Lens:
  Polycarbonate diffusion lens for smooth light output.
• Ambient Temperature:
  Suitable for use in 40°C ambient temperatures.
• Cold Weather Starting:
  The minimum starting temperature is -22°F/-30°C.
• Housing:
  Professional-grade, die-cast aluminum construction.
• Adapters:
  Edison E26 medium base adapter included. GU24 socket adapter sold separately.
• Installation:
  Pre-installed Torsion springs and optional friction clips are both included to aid in attaching and securing the 6" DLED to the incandescent housing.
• Finish:
  Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals.
• Green Technology:
  Mercury and UV free, and RoHS compliant.

• Lifespan:
  100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• LEDs:
  High-output, long-life LEDs with 3 step binnning and integrated driver technology.
• Color Consistency:
  3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.

• Equivalency:
  8W replaces 50W Par.
• California Title 24:
  DLED6R8 complies with 2013 California Title 24 building and electrical codes as a commercial indoor fixture for general spaces when used with a vacancy sensor and TRIAC dimming control. Select a vacancy sensor using catalog number LVS800. TRIAC dimmer provided by others.
• Warranty:
  RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish.
• Country of Origin:
  Designed by RAB in New Jersey and assembled in the USA by RAB's IBEW Local 3 workers.
• Buy American Act Compliant:
  This product is a COTS item manufactured in the United States, and is compliant with the Buy American Act.
• Recovery Act (ARRA) Compliant:
  This product complies with the 52.225-21 "Required Use of American Iron, Steel, and Manufactured Goods-- Buy American Act-- Construction Materials (October 2010).
• Trade Agreements Act Compliant:
  This product is a COTS item manufactured in the United States, and is compliant with the Trade Agreements Act.
• GSA Schedule:
  Suitable in accordance with FAR Subpart 25.4.
