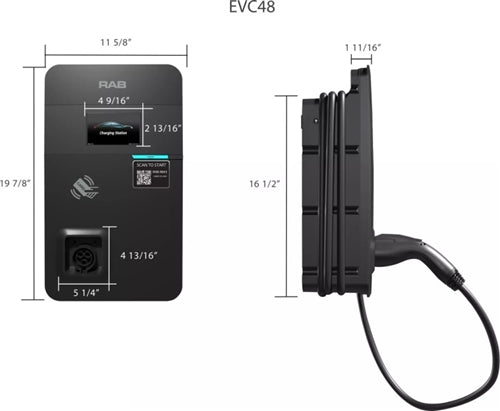

RAB EVC48 48A EVC Level 2 Charger, 5" Display, 16.4 ft Cable SAEJ1772 Plug Networked OCPP
RAB EVC48 48A EVC Level 2 Charger, 5" Display, 16.4 ft Cable SAEJ1772 Plug Networked OCPP
Regular price
Price:
$2,790.28
Regular price
Price:
Sale price
$2,790.28
Unit price
per
Ordering a large quantity?Request a quote
description
| Performance | |
|
Product Type
|
EVC Level 2, 48A Series
|
|
Description
|
48A / 11.5 kw
Residential/Commercial Charger: 4G networked, OCPP 1.6J protocol, 16.4' Cord,
5-inch LCD display, configurable power, and ISO 15118 protocol.
|
|
Protocol
|
OCPP 1.6 JSON
(Upgradeable to 2.0)
|
|
Output Power
|
11.5kW
|
|
Power Configurable
|
6A, 8A, 10A, 13A, 16A,
20A, 25A, 30A, 32A, 40A, 48A. Default setting: 48A
|
|
Network Connectivity
|
Ethernet + Wi-Fi (IEEE
802.11 b/g/n) + 4G
|
|
RFID + QR Code Capability
|
Included
|
|
Load Management
|
Online or Local
|
|
OTA Capability
|
Included
|
|
Cable Management
|
Optional with accessories
sold seperately
|
|
Authentication Method
|
Smart Phone App, ISO
15118, RFID (ISO/IEC 14443A/B, ISO/IEC 15693, FeliCa™, MIFARE)
|
|
Electrical
|
|
|
Charging Interface
|
SAEJ1772 Type 1
|
|
Input Current
|
48A
|
|
Operating Frequency
|
50/60Hz
|
|
Input Voltage
|
200-240V, Single Phase
|
|
AC Input Connection
|
L1/L2/GND or L/N/PE
|
|
Output Current
|
48A (max) (with AC
breaker capacity selection)
|
|
Operating Temperature
|
-22°F to 122°F (30°C to
50°C)
|
|
Humidity
|
Max 85%
|
|
Input Side Protection
|
UVP, OVP, Surge
Protection, Ground Fault
|
|
Output Side Protection
|
OCP, Control Pilot Fault,
Residual Current Protection
|
|
Internal Protection
|
OTP, Relay Welding
Detection, CCID Self-Test, MCU Function Fault Detection
|
|
Rating of Branch Circuit
Breaker
|
60A
|
|
Input Wire Size
|
6 AWG
|
|
Metering Accuracy
|
Meter IC (1% Accuracy)
|
|
Construction
|
|
|
Display Screen
|
5-inch LCD display, LED
Indicator
|
|
Number of Ports
|
Single
|
|
Charging Cable
|
16.4 ft
|
|
Finish
|
Black
|
|
Tamper Resistant
|
IK08 rated to protect the
unit against external mechanical impacts (not rated for the LCD display
screen or RFID)
|
|
Installation
|
|
|
Mounting
|
Wall, Single or Double
Pedestal
|
|
Hardwired
|
Yes
|
|
Compliance
|
|
|
Listings
|
UL Listed, UL 2594;
UL2231-1/-2
|
|
Shock Protection
|
CCID20. A charging
circuit interrupting device (CCID) automatically interrupts the circuit when
the current reaches or exceeds the threshold current of 20mA.
|
|
OpenADR
|
Meets requirements to
comply with OpenADR 2.0b.
|
|
IP Rating
|
Ingress protection rating
of IP56 for dust and water
|
|
NEMA Rating
|
Type 4, weatherproof
protection
|
|
California Type
Evaluation Program (CTEP)
|
This product meets the
requirements of the California Type Evaluation Program (CTEP).
|
|
Energy Star Approved
|
This product is ENERGY
STAR® Version 1.1 Certified. Certified and meets program requirements for
Electric Vehicle Supply Equipment. Upgradable to Version 1.2.
|
|
Energy Star ID
|
2389562
|
|
RoHS
|
Mercury and UV free.
RoHS-compliant components.
|
|
FCC
|
Complies with Part 15 of
the FCC Rules
|
|
Other
|
|
|
Compatible Accessories
|
EVPS Single Pedestal Base
|
|
3 Yr Limited Warranty
|
3 years limited warranty |
|
Note
|
All values are typical
(tolerance +/- 10%)
|
