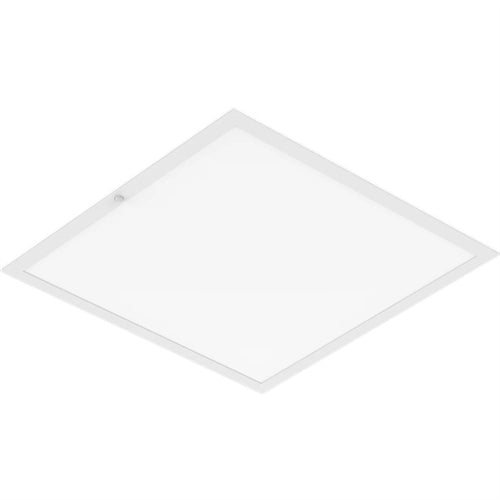

RAB EZP2X2/LCBS 2'x2' EZPAN Edgelit LED Panel, Field Adjustable 40W/30W/25W, CCT Selectable 3500K/4000K/5000K, No Mount Accessories

Field Adjustable Light Output:

Suitable for damp locations

RAB LED luminaires have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Constant Current, Class II, 120-277V, 50/60 Hz:

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

2.64% at 120V, 8.15% at 277V

99.6% at 120V, 93.2% at 277V

No

Yes

2 kV + 4 kV

The minimum starting temperature is -22°F (-30°C)

Suitable for use in up to 104°F (40°C)

Suitable for direct contact with insulation

Precision engineered polystyrene diffuser provides high uniformity, and reduced glare. No visible diodes, hot-spots, or shadows.

Aluminum+Iron

TPET reflective paper

Formulated for high durability and long-lasting color

Mercury and UV free. RoHS-compliant components.

Surface, suspended & recessed mounting. The mounting accessories sold separately.

Standard integral T-bar clips secure the fixture to T-bars and prevent T-system separation

Long-life, high-efficacy, surface-mount LEDs

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.

No

Bluetooth Mesh

Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction.

Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.

Method 1: Delete from App

SmartShift is the most advanced - yet easiest to use - circadian lighting system, which syncs white color tuning with the local sunrise and sunset.

RJ09

9 ft

20 ft diameter at 9 ft mounting height

Passive Infrared (PIR)

Uncommissioned State:

Yes, using the Lightcloud Blue mobile app

Occupancy, Vacancy

On or On at a Dim Level

Off or On at a Dim Level

1 minute to 240 minutes

Closed loop daylight harvesting with continuous dimming. Specify settings using the Lightcloud Blue mobile app.

The High Dim Level (HDL) is limited to 50%-70%
