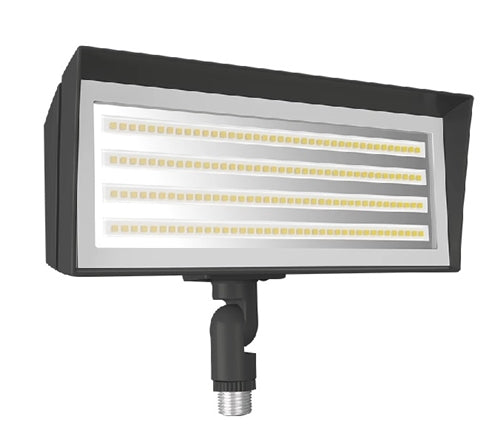

RAB FFLEDS/PCU 26W Knucle Mount LED Floodlight, 4000K/5000K, 2615-6243 Lumens, 82 CRI, 120-277V Photocell, Bronze Finish

Field Adjustable Light Output:

Suitable for wet locations. Suitable for mounting within 4ft (1.2m) of the ground.

Ingress protection rating of IP66 for dust and water

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.

Long-life, high-efficacy, discrete, surface-mount LEDs

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

18W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.15A, 208V: 0.09A, 240V: 0.08A, 277V: 0.07A

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

1.93% at 120V, 10.57% at 277V

99.92% at 120V, 90.54% at 277V

120-277V Button photocell included. Photocell is compatible with 120V-277V.

4kV

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

39W: 200W Metal Halide

NEMA Beam Spread of 7H x 6V

The minimum starting temperature is -40°C (-40°F)

Max Power Temp Rating: 40°C (104°F)

Die-cast aluminum

EPA = 0.32

Ultra clear, tempered glass

Vacuum metalized polycarbonate

High-temperature silicone gaskets

Formulated for high durability and long-lasting color

Mercury and UV free. RoHS-compliant components.

Robust knuckle mount with 180° adjustable swivel arm. Tilt angle in 10° increments.

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of ten (10) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
