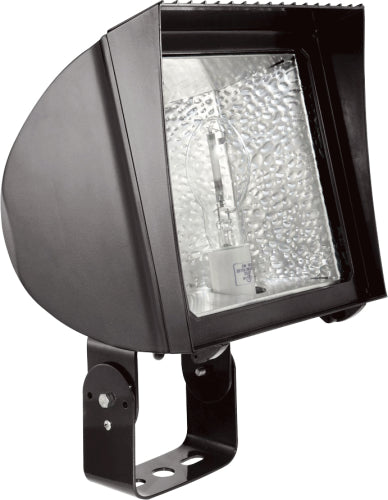

• RAB FX70TQT/PC FlexFlood Light Trunnion Mount 70W High Pressure Sodium Lamp 120V-277V Bronze Color with Photocontrol
1 1

RAB FX70TQT/PC FlexFlood Light Trunnion Mount 70W High Pressure Sodium Lamp 120V-277V Bronze Color with Photocontrol

RAB FX70TQT/PC FlexFlood Light Trunnion Mount 70W High Pressure Sodium Lamp 120V-277V Bronze Color with Photocontrol

Price: $340.95
Price: $340.95

MODEL: RAB-FX70TQT-PC
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
Find your items based on model numbers and product specification. Photo might not represent the actual item or color. Often times, photo is used as a representation of a product family
View full details

description

Description

Specification grade HID floodlight with cutting edge design, architectural quality, superior features and mounting options at competitve prices.

Features and Benefits

  • Integra hood glare shield for friendly lighting when properly aimed
  • Silicone gasket for durable weatherproofing & easy relamping
  • Precision die cast aluminum housing and lens frame with durable polyester powder coating
  • Anodized aluminum reflector rotates for horizontal or vertical lamp position
  • Medium base 4kv pulse rated socket
  • Two field adjustable socket positions allow fine tuning of beam spread)
  • Fins for heat dissipation extend lamp and ballast life
Listings
  • UL Listing:
    Suitable for wet locations. Suitable for ground mounting.
Electrical
  • Photocell:
    120 Button Photocell Included. Photocell is only compatible with 120V.
  • Socket:
    HID Porcelain 4kv Pulse Rated socket with nickel plated screw shell CFL Plug in type, GX24q-4 base.
Construction
  • Housing:
    Precision die cast aluminum. 1/2" NPS locking Swivel Arm, Wall Bracket Trunnion or Slip Fitter.
  • Reflector:
    Anodized aluminum. Field adjustable beam spread. Rotates 90° for horizontal or vertical lamp position.
  • Lens Frame & Glare Shield:
    Precision die cast aluminum. Hinged for easy access. Phillips head screws for added security.
  • Finish:
    Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals.
  • Lens:
    Thermal tempered shock resistant glass, 3/16" thick.
  • Lens Gasket:
    High temperature one piece molded silicone set in die cast retaining groove. Remains in place during relamping.
  • Ground Mounting:
    Use the new MPM19 PVC Mighty Post with aluminum cap for sturdy installation.
Other
  • Patents:
    Pat. D545,987.
  • Country of Origin:
    Designed by RAB in New Jersey and assembled in the USA by RAB's IBEW Local 3 workers.
  • Buy American Act Compliant:
    This product is a COTS item manufactured in the United States, and is compliant with the Buy American Act.
  • Recovery Act (ARRA) Compliant:
    This product complies with the 52.225-21 "Required Use of American Iron, Steel, and Manufactured Goods-- Buy American Act-- Construction Materials (October 2010).
  • Trade Agreements Act Compliant:
    This product is a COTS item manufactured in the United States, and is compliant with the Trade Agreements Act.
  • GSA Schedule:
    Suitable in accordance with FAR Subpart 25.4.
