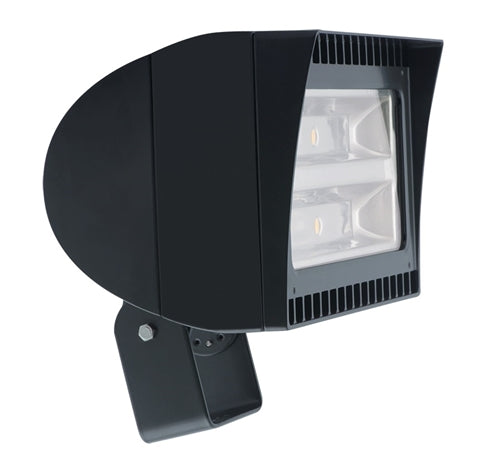

RAB FXLED105T/480 105W Trunnion Mount LED Floodlight, 5000K (Cool), No Photocell, 480V, Standard Operation, Bronze Finish

Description

Ultra high output, high efficiency LED floodlight with wide NEMA type 6H x 6V beam spread. Patent Pending airflow technology ensures long LED and driver lifespan. Use for general and security lighting for large areas, building facades, signs and landscapes.

Features and Benefits

• 66% energy cost savings vs. HID
• NEMA Type - 6H x 6V
• Air-Flow technology heat dissipation
• 100,000-hour LED lifespan
• 5-year warranty

• UL Listing:
  Suitable for wet locations. Suitable for ground mounting.
• IESNA LM-79 & LM-80 Testing:
  RAB LED luminaries have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have been received the Department of Energy "Lighting Facts" label.

• Lifespan:
  100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• LEDs:
  Multip-chip, high-output, long-life LEDs
• Color Consistency:
  7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
• Color Stability:
  LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
• Color Uniformity:
  RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2011.

• IP Rating:
  Ingress Protection rating of IP66 for dust and water.
• Ambient Temperature:
  Suitable for use in 40°C (104°F) ambient temperatures.
• Effective Projected Area:
  EPA = 2
• Cold Weather Starting:
  The minimum starting temperature is -40°F/-40°C.
• Thermal Management:
  Superior thermal management with external Air-Flow fins.
• Housing:
  Die-cast aluminum housing and door frame
• Mounting:
  Heavy-duty Trunnion mount with stainless steel hardware
• Reflector:
  Specular, vacuum-metalized polycarbonate
• Gaskets:
  High-temperature silicone gaskets
• Finish:
  Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals.
• Green Technology:
  Mercury and UV free, and RoHS compliant. Polyester powder coat finish formulated without the use of VOC or toxic heavy metals.

• Drivers:
  Two Drivers, Constant Current, Class 2, 1400mA, 347-480V, 50/60Hz, 0.25A, Power Factor 99%
• Ballast Volts:
  480V

• NEMA Type:
  NEMA Beam Spread of 6H x 6V

• Field & Beam Angles:
  Horizontal Beam Angle (50%): 91.8°, Vertical Beam Angle (50%): 73.5° Horizontal Field Angle (10%): 121.0°, Vertical Field Angle (10%): 108.0°

• Warranty:
  RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish.
• Patents:
  The design of FXLED105 is protected by patents pending in US, Canada, China, Taiwan and Mexico.
• Country of Origin:
  Designed by RAB in New Jersey and assembled in the USA by RAB's IBEW Local 3 workers.
• Buy American Act Compliant:
  This product is a COTS item manufactured in the United States, and is compliant with the Buy American Act.
• Recovery Act (ARRA) Compliant:
  This product complies with the 52.225-21 "Required Use of American Iron, Steel, and Manufactured Goods-- Buy American Act-- Construction Materials (October 2010).
• Trade Agreements Act Compliant:
  This product is a COTS item manufactured in the United States, and is compliant with the Trade Agreements Act.
• GSA Schedule:
  Suitable in accordance with FAR Subpart 25.4.
