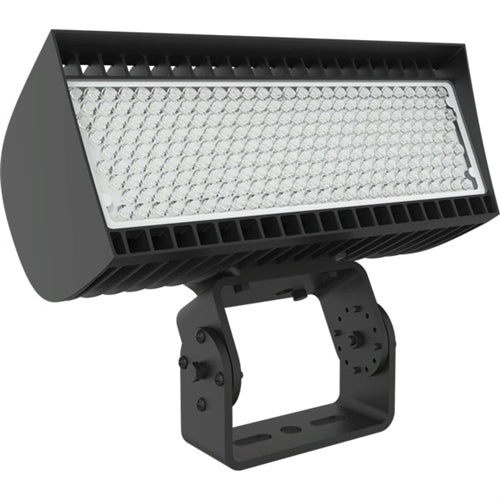

RAB FXLEDMB33T/7PR LED Floodlight, Field Adjustable 346/213W, Field Adjustable 5000K/ 4000K, Trunnion Mount, 3Hx3V beam spread, 120-277V, 0-10V Dimming, Bronze Finish
RAB FXLEDMB33T/7PR LED Floodlight, Field Adjustable 346/213W, Field Adjustable 5000K/ 4000K, Trunnion Mount, 3Hx3V beam spread, 120-277V, 0-10V Dimming, Bronze Finish
Regular price
Price:
$1,383.03
Regular price
Price:
Sale price
$1,383.03
Unit price
per
Ordering a Large Quantity?
Request a quote
description
| Field Adjustability | |
|
Field Adjustable
|
Field Adjustable Light
Output:
|
| 346W/213W (factory default 346W) | |
| Color temperature (selectable by 4000K and 5000K) | |
|
Compliance
|
|
|
UL Listed
|
Suitable for wet
locations. Suitable for mounting within 4 ft (1.2m) of the ground.
|
|
IP Rating
|
Ingress protection rating
of IP66 for dust and water
|
|
IESNA LM-79 & LM-80
Testing
|
RAB LED luminaires and
LED components have been tested by an independent laboratory in accordance
with IESNA LM-79 and LM-80.
|
|
Trade Agreements Act
Compliant
|
This product is a product
of Cambodia and a "designated country" end product that complies
with the Trade Agreements Act
|
|
DLC Listed
|
This product is listed by
Design Lights Consortium (DLC) as an ultra-efficient premium product that
qualifies for the highest tier of rebates from DLC Member Utilities. Designed
to meet DLC 5.1 requirements.
|
| DLC Product Code: S-K4LY03 | |
|
LED
Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy,
discrete, surface-mount LEDs
|
|
Color Consistency
|
7-step MacAdam Ellipse
binning to achieve consistent fixture-to-fixture color
|
|
Color Stability
|
LED color temperature is
warrantied to shift no more than 200K in color temperature over a 5-year
period
|
|
Color Uniformity
|
RAB's range of Correlated
Color Temperature follows the guidelines of the American National Standard
for (SSL) Products, ANSI C78.377-2017.
|
|
Electrical
|
|
|
Driver
|
213W: Constant Current,
Class 2, 120-277V, 50/60 Hz, 120V: 1.78A, 208V: 1.03A, 240V: 0.89A, 277V:
0.77A
|
|
Dimming Driver
|
Driver includes dimming
control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming
circuit. Dims down to 10%.
|
|
THD
|
7.25% at 120V, 6.97% at
277V
|
|
Power Factor
|
99.7% at 120V, 96.4% at
277V
|
|
Surge Protection
|
6kV
|
|
7-Pin Receptacle
|
ANSI C136.41 7-pin
receptacle, compatible with wireless control systems
|
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan
based on IES LM-80 results and TM-21 calculations
|
|
Wattage Equivalency
|
346W: 1000W Metal Halide
|
| 213W: 750W Metal Halide | |
|
Optical
|
|
|
NEMA Type
|
NEMA Beam Spread 3H x 3V
|
|
Construction
|
|
|
Cold Weather Starting
|
The minimum starting
temperature is -40°C (-40°F)
|
|
Ambient Temperature
|
Max Power Temp Rating:
40°C (104°F)
|
|
Housing
|
Die-cast aluminum
|
|
Tilt Increment
|
Rotates in 30 degree
increments
|
|
Lens
|
Ultra clear, tempered
glass
|
|
Reflector
|
Vacuum metalized
polycarbonate
|
|
Vibration Rating
|
3G vibration rating per
ANSI C136.31
|
|
Effective Projected Area
|
EPA = 0.59
|
|
Gaskets
|
High-temperature silicone
gaskets
|
|
Finish
|
Formulated for high
durability and long-lasting color
|
|
Green Technology
|
Mercury and UV free.
RoHS-compliant components.
|
|
Installation
|
|
|
Mounting
|
Heavy-duty Trunnion mount
with stainless steel hardware
|
|
Other
|
|
|
Warranty
|
RAB warrants that our LED
products will be free from defects in materials and workmanship for a period
of ten (10) years from the date of delivery to the end user, including
coverage of light output, color stability, driver performance and fixture
finish. RAB's warranty is subject to all terms and conditions found
at rablighting.com/warranty.
|
