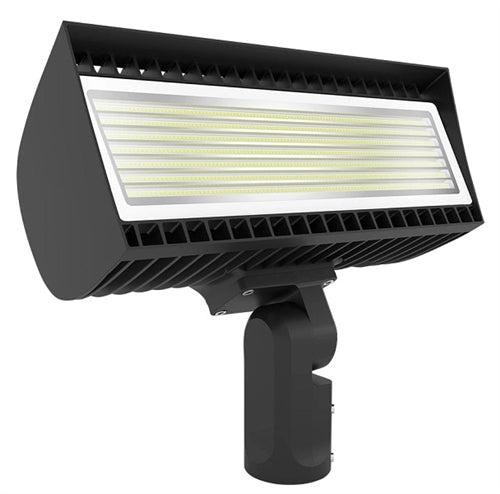

RAB FXLEDMSF/480 LED Floodlight 346W 4000K/5000K, 30156-45135 lumens, 82 CRI, Bronze Finish, 480V

Field Adjustable Light Output: 346W/213W (factory default 346W)

Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground.

Ingress protection rating of IP66 for dust and water

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.

Long-life, high-efficacy, discrete, surface-mount LEDs

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

213W: Constant Current, Class 2, 480V, 50/60 Hz, 480V: 0.46A

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

4.46% at 480V

97.3% at 480V

6kV

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

346W: 1000W Metal Halide

NEMA Beam Spread of 7H x 6V

The minimum starting temperature is -40°C (-40°F)

Max Power Temp Rating: 40°C (104°F)

Die-cast aluminum

2 3/8" slipfitter mount with stainless steel hardware

Rotates in 5 degree increments

Ultra clear, tempered glass

Vacuum metalized polycarbonate

3G vibration rating per ANSI C136.31

EPA = 0.72

High-temperature silicone gaskets

Formulated for high durability and long-lasting color

Mercury and UV free. RoHS-compliant components.

10 years limited warranty
