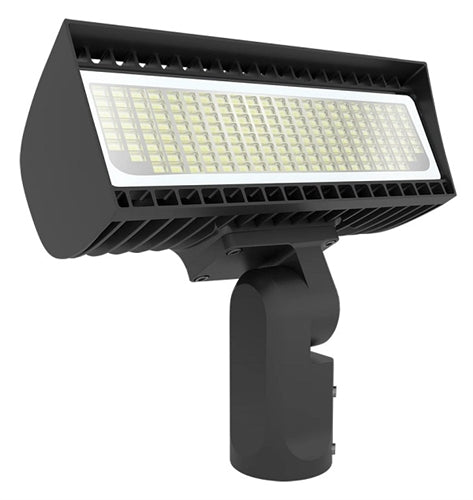

RAB FXLEDSSF Slipfitter Mount LED Floodlight, 4000K/5000K, 10,206 Lumens, 80 CRI, Standard Operation, Bronze Finish

RAB FXLEDSSF Slipfitter Mount LED Floodlight, 4000K/5000K, 10,206 Lumens, 80 CRI, Standard Operation, Bronze Finish

Price: $742.00
Price: $742.00

MODEL: RAB-FXLEDSSF

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a Large Quantity? Request a quote
View full details

description

PRODUCT SPECIFICATIONS

Field Adjustability
  • Field Adjustable: Field Adjustable Light Output: 69W/97W/132W/168 (factory default 168W). Color temperature (selectable by 4000K and 5000K)
Compliance
  • UL Listed: Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80
  • DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements. DLC Product Code: S-ZTA2XY
LED Characteristics
  • LEDs: Long-life, high-efficacy, discrete, surface-mount LED
  • Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
  • Color Uniformity: RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
Electrical
Driver:
  • 69W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.58A, 208V: 0.34A, 240V: 0.29A, 277V: 0.2
  • 97W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.81A, 208V: 0.47A, 240V: 0.41A, 277V: 0.35
  • 132W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 1.10A, 208V: 0.64A, 240V: 0.55A, 277V: 0.48
  • 168W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 1.40A, 208V: 0.81A, 240V: 0.70A, 277V: 0.61A
Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD: 3.6% at 120V, 8.5% at 277V
Power Factor: 100% at 120V, 98.1% at 277V
Surge Protection: 6kV
Performance
Lifespan: 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
