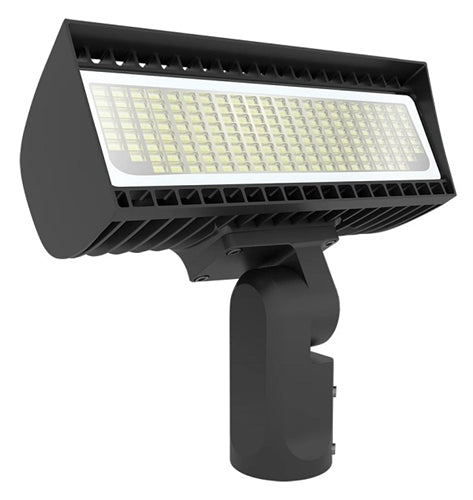

RAB FXLEDSSF/480 Slipfitter Mount LED Floodlight, 4000K/5000K, 10563-22727 Lumens, 80 CRI, 480V, Bronze Finish
RAB FXLEDSSF/480 Slipfitter Mount LED Floodlight, 4000K/5000K, 10563-22727 Lumens, 80 CRI, 480V, Bronze Finish
Regular price
Price:
$828.00
Regular price
Price:
Sale price
$828.00
Unit price
per
MODEL: RAB-FXLEDSSF-480
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a Large Quantity?
Request a quote
description
| Field Adjustability | |
|
Field Adjustable
|
Field Adjustable Light
Output: 168W/132W/97W/69W (factory default 168W); Color temperature
(selectable by 4000K and 5000K)
|
|
Compliance
|
|
|
UL Listed
|
Suitable for wet
locations. Suitable for mounting within 1.2m (4ft) of the ground.
|
|
IP Rating
|
Ingress protection rating
of IP66 for dust and water
|
|
IESNA LM-79 & LM-80
Testing
|
RAB LED luminaires and
LED components have been tested by an independent laboratory in accordance
with IESNA LM-79 and LM-80.
|
|
DLC Listed
|
This product is listed by
Design Lights Consortium (DLC) as an ultra-efficient premium product that
qualifies for the highest tier of rebates from DLC Member Utilities. Designed
to meet DLC 5.1 requirements; DLC Product Code: S-HK5F7M
|
|
LED
Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy,
discrete, surface-mount LEDs
|
|
Color Consistency
|
7-step MacAdam Ellipse
binning to achieve consistent fixture-to-fixture color
|
|
Color Stability
|
LED color temperature is
warrantied to shift no more than 200K in color temperature over a 5-year
period
|
|
Color Uniformity
|
RAB's range of Correlated
Color Temperature follows the guidelines of the American National Standard
for (SSL) Products, ANSI C78.377-2017.
|
|
Electrical
|
|
|
Driver
|
69W: Constant Current,
Class 2, 480V, 50/60 Hz, 480V: 0.15A
97W: Constant Current, Class 2, 480V, 50/60 Hz, 480V: 0.21A
132W: Constant Current, Class 2, 480V, 50/60 Hz, 480V: 0.28A 168W:
Constant Current, Class 2, 480V, 50/60 Hz, 480V: 0.35A
|
|
Dimming Driver
|
Driver includes dimming
control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming
circuit. Dims down to 10%.
|
|
THD
|
3.62% at 480V
|
|
Power Factor
|
97.2% at 480V
|
|
Surge Protection
|
6kV
|
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan
based on IES LM-80 results and TM-21 calculations
|
|
Wattage Equivalency
|
168W: 750W Metal Halide;
132W: 400W Metal Halide; 97W: 400W Metal Halide; 69W: 350W Metal Halide
|
|
Optical
|
|
|
NEMA Type
|
NEMA Beam Spread of 6H x
6V
|
|
Construction
|
|
|
Cold Weather Starting
|
The minimum starting
temperature is -40°C (-40°F)
|
|
Ambient Temperature
|
Suitable for use in up to
40°C (104°F)
|
|
Housing
|
Die-cast aluminum
|
|
Mounting
|
2 3/8" slipfitter
mount with stainless steel hardware
|
|
Tilt Increment
|
Rotates in 5 degree
increments
|
|
Lens
|
Ultra clear, tempered
glass
|
|
Reflector
|
Vacuum metalized
polycarbonate
|
|
Vibration Rating
|
3G vibration rating per
ANSI C136.31
|
|
Effective Projected Area
|
EPA = 0.5
|
|
Gaskets
|
High-temperature silicone
gaskets
|
|
Finish
|
Formulated for high
durability and long-lasting color
|
|
Green Technology
|
Mercury and UV free.
RoHS-compliant components.
|
|
Other
|
|
|
Warranty
|
10 years limited warranty
|
