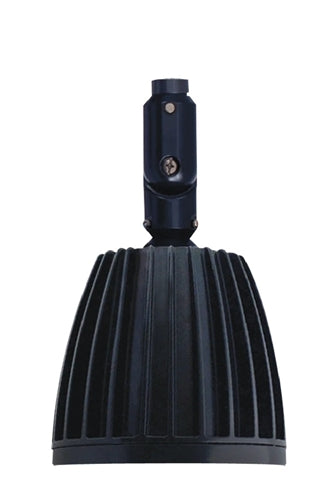

Home > RAB Lighting > RAB GNLED13NB 13W LED Gooseneck Cone Shade, 4000K Color Temperature (Neutral), Flood Reflector, Black Finish

description
| Compliance | |
|
UL Listed
|
Suitable for wet
locations. Suitable for mounting within 4ft (1.2m) of the ground.
|
|
IESNA LM-79 & LM-80
Testing
|
RAB LED luminaires and
LED components have been tested by an independent laboratory in accordance
with IESNA LM-79 and LM-80.
|
|
Construction
|
|
|
Component Only
|
This is a component for
ordering LED Goosenecks. Not a complete fixture without Shade and Arm.
|
|
Housing
|
Precision die-cast
aluminum housing, lens frame and mounting plate
|
|
Gaskets
|
High-temperature Silicone
|
|
Mounting
|
Heavy-duty mounting arm
with "O" ring seal and stainless steel screw
|
|
Finish
|
Formulated for high
durability and long-lasting color
|
|
Green Technology
|
Mercury and UV free.
RoHS-compliant components.
|
|
Ambient Temperature
|
Suitable for use in up to
40°C (104°F)
|
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan
based on IES LM-80 results and TM-21 calculations
|
|
Wattage Equivalency
|
Equivalent to 75W
Incandescent, 50W Metal Halide or 18W CFL
|
|
LED
Characteristics
|
|
|
LED
|
Single multi-chip, 13W
high-output, long-life LED Driver Constant Current
|
|
Color Consistency
|
3-step MacAdam Ellipse
binning to achieve consistent fixture-to-fixture color
|
|
Color Stability
|
LED color temperature is
warrantied to shift no more than 200K in color temperature over a 5-year
period
|
|
Color Uniformity
|
RAB's range of Correlated
Color Temperature follows the guidelines of the American National Standard
for Specifications for the Chromaticity of Solid State Lighting (SSL)
Products, ANSI C78.377-2017.
|
|
Electrical
|
|
|
THD
|
4.7% at 120V, 13.8% at
277V
|
|
Surge Protection
|
4kV
|
|
Other
|
|
|
Patents
|
The design of the
Gooseneck is protected by patents pending in US, Canada, China and Taiwan
|
|
Warranty
|
|
|
Buy American Act
Compliance
|
RAB values USA
manufacturing! Upon request, RAB may be able to manufacture this product to
be compliant with the Buy American Act (BAA). Please contact customer service
to request a quote for the product to be made BAA compliant.
|
