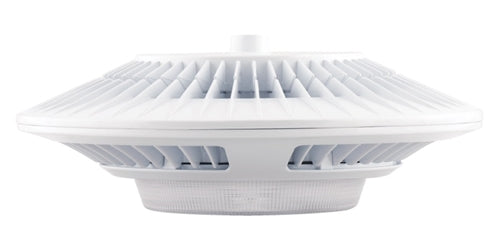

RAB GPLED78NBBW/BL 78W LED Garage Light, 4000K Color Temperature (Neutral), Pendant Mount, Bi-Level Operation, White Finish

Description

78 Watts of energy efficient LED garage lighting replaces 250 Watt Metal Halide. 100,000 hour LED lifespan. 5 year warranty. High-performance output maximizes spacing criterion.

Features and Benefits

• Low-profile design Ideal for Parking Garages
• 78W Replaces 250W MH Luminaires
• 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• Up to 25% Reduction in Fixture Count
• Lock screw provided for pendant mount

• UL Listing:
  Suitable for Wet Locations. Covered Ceiling Mount Only.
• DLC Listed:
  This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
• IESNA LM-79 & LM-80 Testing:
  RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.

• Lumen Maintenance:
  100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.

• LEDs:
  6x13W high-output, long-life LEDs.
• Color Consistency:
  7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
• Color Stability:
  LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
• Color Uniformity:
  RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2011.

• Drivers:
  3x26W Driver, Constant Current, Class 2, 100V-277V, 50/60 Hz, 6kv Surge Protection, 720mA, 100-277VAC 0.4 Amps.
• Power Factor:
  99.4% at 120V, 90.8% 277V
• THD:
  8.0% at 120V, 10.7% at 277V

• Cold Weather Starting:
  Minimum starting temperature is -40°C (-40°F).
• Ambient Temperature:
  Suitable for use in 40°C (104°F) ambient temperatures.
• Thermal Management:
  Superior heat sinking with integrated air-flow fins.
• Housing:
  Precision die-cast aluminum housing and door frame.
• Mounting:
  Easy hanging plate with hooks for ceiling mount.
• Lens:
  Prismatic polycarbonate lens.
• Reflector:
  Specular vacuum-metallized polycarbonate
• Gaskets:
  High-temperature silicone.
• Finish:
  Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals.

• GLED78 with Bi-Level Operation:
  Allows 33%-66%-100% output modes.
• Back Box:
  The ceiling backbox is perfect for adding sensors or making splices to the GLED™ family of products. Surface mounts over any shape box and covers unsightly stains or gaps. Five (1/2") conduit entries enable wiring directly from the back or through the sides using surface conduit.
• Equivalency:
  The GLED78 is Equivalent in delivered lumens to 250W Metal Halide.
• Green Technology:
  Mercury and UV Free, and RoHS compliant.
• California Title 24:
  GLED78BB/BL complies with 2013 California Title 24 building and electrical codes as a commercial indoor fixture for corridors, stairwells, warehouses and covered parking garages when used with an occupancy sensor. Select an occupancy sensor using catalog number LOSBAY800.
• Patents:
  The design of GLED78 is protected by patents pending in US, Canada, China, Taiwan and Mexico.
