description
Description

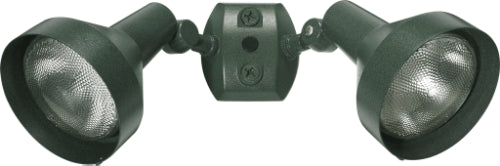

BELL SHAPED DUAL FLOOD KIT
Large size flood for easier relamping and glare reduction. Durable die casting with rugged mounting arm, weatherproof gasket and drain holes. Accepts 2 light bulbs 150 watt PAR38 max. Lamp not supplied.
Features and Benefits
- Rugged die cast aluminum housing with powder coat finish
- Lamp recessed 1" from lip for side glare reduction
- Larger diameter housing for easier relamping
- Set screw for hood, grill or visor attachment
- Heavy duty mouting arm with internal O-ring, locking teeth, and stainless steel screw
- EZ Grip locknut matches fixture finish and can be adjusted with fingers, pliers or a screwdriver
- Large Silicone rubber gasket provides weatherproof protection around the lamp and socket
- HV Visor with integral guard and gass lens for maximum glare reduction and lamp protection
- HGT Guard: Protects lamp from damage and vandalism
- HH Hood with glass lens reduces glare and protects lamp from water and impact damage
UL Listing: | Suitable for wet locations. Suitable for mounting within 4' of the ground. Can be aimed above horizontal with accessory hood or visor |
Socket: | Porcelain with all copper current carrying components |
Compatibility with old H100: | H101 floods and accessories replace the discontinued RAB H100 and accessories. Parts are not interchangeable. Contact factory for price and availability of the old H100 Series. |
Swivels: | Fully adjustable with sure-grip locks. 1/2" NPS threaded arm with serrated locking swivel fits all standard mounting covers. Color matched EZ Grip lock nuts. |
Housings: | Die cast aluminum with powder coat finish |
Gaskets: | High temperature silicone rubber extends around both socket and lamp. |
Lamp: | Medium base Par-38 lamps up to 150 watts. Halogen lamps give brighter light and choice of beam spreads |
Patents: | RAB sensor and fixture designs are protected under U.S. and International Intellectual Property laws. |
