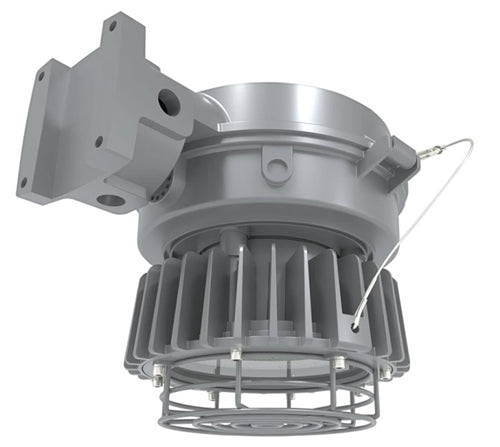

RAB HAZLED30WMCF 30W Hazardous Location LED Light, 4618 Lumens, 5000K, 80 CRI
RAB HAZLED30WMCF 30W Hazardous Location LED Light, 4618 Lumens, 5000K, 80 CRI
Regular price
Price:
$559.48
Regular price
Price:
Sale price
$559.48
Unit price
per
Ordering a large quantity?Request a quote
description
| Hazardous Location Classifications | |
|
Class I Division 2 (Groups A, B, C, D)
|
Class I: A hazardous
location in which flammable gases or vapors may be present in the air in
sufficient quantities to be explosive or ignitable, such as petroleum
refineries, aircraft hangars, dry cleaning plants, utility gas plants or
storage areas for liquified petroleum or natural gas, and spray finishing
areas.
|
| Division 2: Abnormal condition, where ignitable concentrations of flammable gases, vapors or liquids are not like to exist under normal operating conditions, for example: Closed storage drums containing flammable liquids in an inside storage room would not normal allow the hazardous vapors to escape into the atmosphere. But if one of the containers is leaking, you've got an abnormal condition. | |
| Group A - The only substance in group A is acetylene because it is a gas with extremely high explosion pressures. | |
| Group B - This group includes hydrogen and other materials with similar characteristics. | |
| Group C & D - The most usual Class 1 groups. They comprise the greatest percentage of all Class I hazardous locations. Found in Group C is ethylene. Found in Group D are many of the most common flammable substances such as butane, gasoline, natural gas and propane. | |
|
Class II Division 1
(Groups E, F, G)
|
|
|
Class II: Combustible
dust may be present
|
|
| Division 1: Ignitable concentrations of hazards exist under normal operation conditions and/or where the hazard is caused by frequent maintenance or repair work or frequent equipment failure | |
| E: Combustible metal dusts: aluminum, commercial alloys and magnesium | |
| F: Combustible carbonaceous dusts: carbon black, charcoal, coal and coke dusts | |
| G: Other combustible dusts: Chemicals, flour, grain, plastic and wood | |
|
Class II Division 2
(Groups F, G)
|
|
|
Class II: Combustible
dust may be present
|
|
| Division 2: Ignitable concentrations of hazards exist under abnormal operation conditions | |
| F: Combustible carbonaceous dusts: carbon black, charcoal, coal and coke dusts | |
| G: Other combustible dusts: Chemicals, flour, grain, plastic and wood | |
|
Class III
|
|
|
Class III: Easily
ignitable fibers or flyings may be present
|
|
|
UL 844
|
Electric lighting
fixtures for use in hazardous (classified) locations
|
|
UL 1598
|
Electric lighting
fixtures for use in non-hazardous locations
|
|
Compliance
|
|
|
UL Listed
|
Suitable for wet
locations
|
|
IESNA LM-79 & LM-80
Testing
|
RAB LED luminaires and
LED components have been tested by an independent laboratory in accordance
with IESNA LM-79 and LM-80.
|
|
IP Rating
|
Ingress protection rating
of IP66 for dust and water
|
|
DLC Listed
|
This product is on the
Design Lights Consortium (DLC) Qualified Products List and is eligible for
rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
|
|
DLC Listed
|
DLC Product Code: S-LJKWB9 |
|
Electrical
|
|
|
Driver
|
Constant Current, Class
2, 50/60 Hz, 120V-277V, 120V: 0.25A, 208V: 0.15A, 240V: 0.13A, 277V: 0.12A
|
|
Dimming Driver
|
Driver includes dimming
control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming
circuit. Dims down to 10%.
|
|
THD
|
1.61% at 120V, 4.29% at
277V
|
|
Power Factor
|
99.6% at 120V, 92.2% at
277V
|
|
Surge Protection
|
L-N:4KV
|
|
Surge Protection
|
L/N-FG:6KV |
|
Construction
|
|
|
Cold Weather Starting
|
The minimum starting
temperature is Ta = -40°C (-40°F)
|
|
Maximum Ambient
Temperature
|
Suitable for use in up to
Ta = 60°C (140°F)
|
|
Housing
|
Die-cast aluminum
|
|
Mounting
|
Wall mount
|
|
Lens/Globes
|
Clear flat glass lens
|
|
Gaskets
|
High-temperature silicone
|
|
Green Technology
|
Mercury and UV free.
RoHS-compliant components.
|
|
Finish
|
Formulated for high
durability and long-lasting color
|
|
LED
Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy,
surface-mount LEDs
|
|
Color Uniformity
|
RAB's range of Correlated
Color Temperature follows the guidelines of the American National Standard
for Specifications for the Chromaticity of Solid State Lighting (SSL)
Products, ANSI C78.377-2017.
|
|
Color Consistency
|
7-step MacAdam Ellipse
binning to achieve consistent fixture-to-fixture color
|
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan
based on IES LM-80 results and TM-21 calculations
|
|
Optical
|
|
|
BUG Rating
|
B2 U0 G1
|
|
Other
|
|
|
Warranty
|
5 years limited warranty
|
