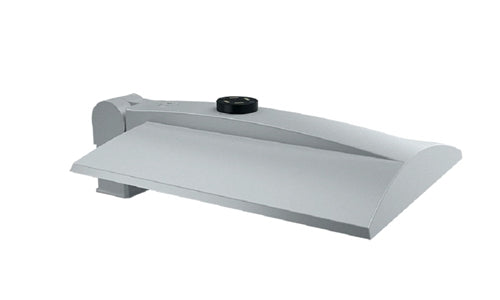

RAB IVAT2-100LSF740GH/7PR 94W LED Ivelot Area Light, 4000K (Neutral), 10207 Lumens, 73CRI, 120-277V, Dimmable, 7-Pin Receptacle, Gray Finish

Suitable for wet locations

RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80

An IVELOT edge-lit area light can be used with a motion sensor or photocell control option to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,v)

Ingress protection rating of IP66 for dust and water

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.

Class 2, 50/60Hz, 480V 4kV standard, 10kV optional

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

12.27% at 480V

96% at 480V

ANSI C136.41 7-pin receptacle, compatible with wireless control systems

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations at 25°C

Long-life, high-efficacy, surface-mount LEDs

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

The minimum starting temperature is -40°C (-40°F)

Suitable for use in up to 40°C (104°F)

Precision die-cast aluminum

The Type II distribution is ideal for wide walkways, on ramps and entrance roadways, bike paths and other long and narrow lighting applications. This type is meant for lighting larger areas and usually is located near the roadside. This type of lighting is commonly found on smaller side streets or jogging paths.

2 3/8" slipfitter mount with stainless steel hardware

Diffused Polymethyl Methacrylate (PMMA)

EPA = 2.1

Formulated for high durability and long-lasting color

Mercury and UV free. RoHS-compliant components.

B3 U0 G3

5 years limited warranty
