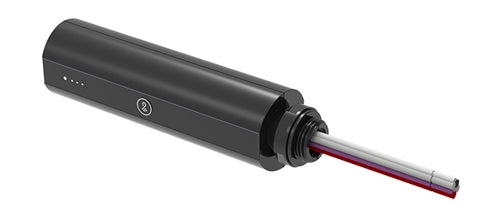

RAB LCCONTROL20/D10 Lightcloud Controller
RAB LCCONTROL20/D10 Lightcloud Controller
Regular price
Price:
$312.59
Regular price
Price:
Sale price
$312.59
Unit price
per
Ordering a large quantity?Request a quote
description
PRODUCT DESCRIPTION
- Switching for a fixture or entire zone, hard-wired or remote
- Optional 0-10V dimming for LED and fluorescent fixtures
- Easily set up schedules and scenes
- Power measurement and energy reporting
- Remote control from LIghtcloud web application
- Communicates over secure wireless mesh network - no internet required
- Cloud-based management with no software to install or maintain

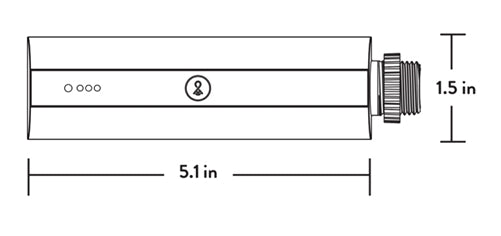

- Cylindrical design for easy installation at threaded junction boxes
PRODUCT SPECIFICATIONS
Listings
-
UL Listing:
Suitable for indoor and outdoor use. -
DLC Listed:
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
-
Input Voltage:
120-277 VAC -
Frequencies:
50/60 Hz -
Current Draw:
30 mA @ 120VAC
20 mA @ 277VAC -
Load Switching Capacity:
120VAC/15A Tungsten, Magnetic, Electronic
277VAC/20A Tungsten, Magnetic, Electronic
120VAC/1HP, 240VAC/2HP
-
IP Rating:
Ingress Protection rating of IP66 for dust and water.
-
Operating Temperature Range:
-20°C to 40°C -
Storage Temperature Range:
-40°C to 80°C -
Maximum Relative Humidity:
85% -
Mounting:
Junction box for both indoor or outdoor. Lighting Panel or Trough. -
Wire Gauge:
4x6 in 12AWG High-voltage pigtails, stripped
2x12 in 22AWG Low-voltage pigtails, 300V insulation, stripped
-
Obstructions:
100 feet
-
Warranty:
10-year full hardware warranty with 100% repair/replacement coverage for all properly installed devices.
Download PDF specification Share your knowledge of this product. Be the first to write a review »
