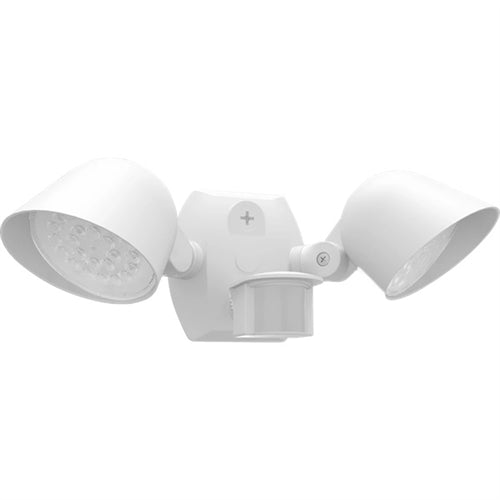

RAB LF17X2W/SMS 16/10/8/5/3W Field-Adjustable LED Floodlight, 2700/3000/3500/4000/5000K, 82-86 CRI, White

Field Adjustable Light Output:

Suitable for wet locations

Ingress protection rating of IP65 for dust and water

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Long-life, high-efficacy, discrete, surface-mount LEDs

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

LED glows red day & night for "on guard" deterrence

8W: Constant Current, Class P, 120V, 50/60 Hz, 120V: 0.07A

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

7.7% at 120V

99.7% at 120V

Yes

No

2.5kV

Double flip wall switch logic prevents activation by brief power outages. Resets after 6 hours. No extra wiring needed.

Circuits fully shielded for maximum radio frequency immunity

500W @ 120 volts

250W @ 120 volts

5 amps

Negligible

None

Relay On/Off Model Switches 240W when lights are mounted to sensor. 500W Incandescent or 240W Fluorescent of remotely mounted lighting @ 120 volts.

Performance

50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

The minimum starting temperature is -40°C (-40°F)

Suitable for use in up to 40°C (104°F)

Die-cast aluminum

Rotates in 10 degree increments

Polymethyl Methacrylate (PMMA)

O-ring silicone

Formulated for high durability and long-lasting color

Mercury and UV free. RoHS-compliant components.

Knuckle mount

5 seconds to 15 minutes

5 second test time for fast installation. Works day or night.

Auto mode starts after 4 minutes of testing. No adjustment needed.

Deactivates lights during daylight. Fully adjustable for 24 hour operation or custom applications.

5 seconds to 15 minutes

Adjustable

Time, ambient light & sensitivity

180° detection pattern

5-year sensor warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
