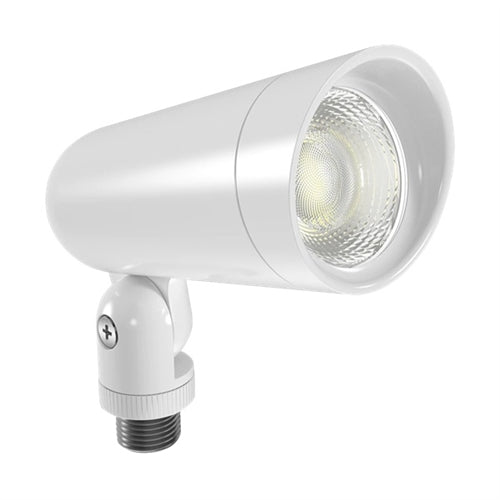

Home > RAB Lighting > RAB LF34SW 8W Field-Adjustable Floodlight LED, CCT Selectable 2700/3000/3500/4000/5000K, Knuckle Arm Mount, White Finish

description
| Field Adjustability | |
|
Field Adjustable
|
Field Adjustable Light
Output:
|
| Color temperature selectable by 2700K, 3000K, 3500K, 4000K and 5000K (default: 4000K) | |
|
Compliance
|
|
|
UL Listed
|
Suitable for wet
locations
|
|
IP Rating
|
Ingress protection rating
of IP65 for dust and water
|
|
Trade Agreements Act
Compliant
|
This product is a product
of Cambodia and a "designated country" end product that complies
with the Trade Agreements Act
|
|
IESNA LM-79 & LM-80
Testing
|
RAB LED luminaires and
LED components have been tested by an independent laboratory in accordance
with IESNA LM-79 and LM-80.
|
|
LED
Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy,
discrete, surface-mount LEDs
|
|
Color Consistency
|
7-step MacAdam Ellipse
binning to achieve consistent fixture-to-fixture color
|
|
Color Uniformity
|
RAB's range of Correlated
Color Temperature follows the guidelines of the American National Standard
for (SSL) Products, ANSI C78.377-2017.
|
|
Electrical
|
|
|
Driver
|
Constant Current, Class
2, 120V, 50/60 Hz, 120V: 0.07A
|
|
THD
|
13.41% at 120V
|
|
Power Factor
|
97.1% at 120V
|
|
Dimmable
|
Yes, 120V with TRIAC
dimmer
|
|
Dim to Off
|
Yes
|
|
Aux Power Supply
|
No
|
|
Surge Protection
|
2.5kV
|
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan
based on IES LM-80 results and TM-21 calculations
|
|
Construction
|
|
|
Cold Weather Starting
|
The minimum starting
temperature is -40°C (-40°F)
|
|
Maximum Ambient
Temperature
|
Suitable for use in up to
40°C (104°F)
|
|
Housing
|
Die-cast aluminum
|
|
Tilt Increment
|
Rotates in 2 degree
increments
|
|
Lens
|
Tempered glass
|
|
Gaskets
|
High-temperature silicone
|
|
Finish
|
Formulated for high
durability and long-lasting color
|
|
Green Technology
|
Mercury and UV free.
RoHS-compliant components.
|
|
Installation
|
|
|
Mounting
|
Knuckle mount
|
|
Other
|
|
|
5 Yr Limited Warranty
|
The RAB 5-year, limited
warranty covers light output, driver performance and paint finish. RAB's
warranty is subject to all terms and conditions found
at rablighting.com/warranty.
|
Share your knowledge of this product. Be the first to write a review »
Browse for more products in the same category as this item:
Download PDF Specification
