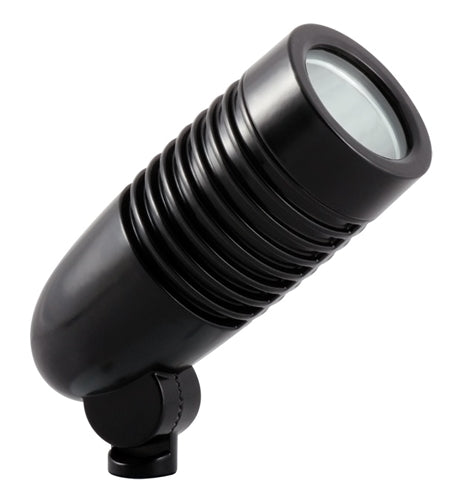

RAB LFLED4LVB 4W Low Voltage LED Floodlight, 4800K (Cool), Black Finish

Description

Compact 4 Watt LED floodlight works with 12V AC lighting systems. Perfectly suited for small-scale landscape lighting applications.

Features and Benefits

• Works with existing 12V AC landscape lighting systems
• Replaces 35W MR16 halogen
• Reduces energy consumption by 85%
• Optional spot and narrow spot reflector kits available
• 100,000-Hour LED lifespan

• UL Listing:
  Suitable for wet locations. Suitable for ground mounting.

• Driver:
  Class 2, 50/60 Hz, 12VAC Max, 1.5A
• Voltage:
  12V AC

• NEMA Type:
  NEMA Beam Spread of 4H x 4V
• Spot Lens:
  Optional spot lens enables a tool-less conversion to a NEMA Type 3H x 3V. Great for accent lighting or grazing buildings for an artistic touch.Spot reflector kit sold separately here.
• Narrow Spot Lens:
  Optional narrow spot lens enables a tool-less conversion to a NEMA Type 3H x 2V. Great for accent lighting or grazing buildings for an artistic touch.Narrow spot reflector kit sold separately here.

• Lens:
  Microprismatic diffuser produces a smooth distribution and low glare.
• Cold Weather Starting:
  Minimum starting temperature is -40°F/-40°C.
• Ambient Temperature:
  Suitable for use in 40°C (104°F) ambient temperatures.
• Thermal Management:
  Optimized using computational fluid dynamics software to ensure long LED and driver lifespan.
• Housing:
  Precision die-cast aluminum housing, lens frame and mounting arm.
• Gasket:
  High temperature silicone.
• Finish:
  Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals.
• Green Technology:
  Mercury and UV free, and RoHS compliant. Polyester powder coat finish formulated without the use of VOC or toxic heavy metals.

• Lifespan:
  100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• LED:
  Multi-chip, high-output, long-life LED
• Color Consistency:
  4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
• Color Stability:
  LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
• Color Uniformity:
  RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2008.

• Equivalency:
  The LFLED4LV is equivalent in delivered lumens to a 35W MR16.
• Wiring:
  30" SPT1 zip cord included. Transformers provided by others.
• Warranty:
  RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish.
• California Title 24:
  LFLED4LV complies with 2013 California Title 24 building and electrical codes as a commercial outdoor non-pole-mounted fixture < 30 Watts when used with a photosensor control. Select catalog number PCS900(120V) or PCS900/277 to order a photosensor.
• Patents:
  The design of the LFLED is protected by Taiwan Patent 01510966 and pending patents in US, Canada, China, and Mexico.
