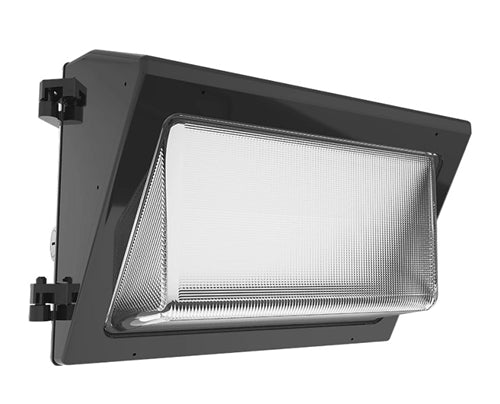

RAB Lighting WP2XFU29 LED Wallpack 29W/20W/15W Field Adjustable Light Output, 3000K, 4000K and 5000K Color Selectable, Bronze

Field Adjustable Light Output:

Suitable for wet locations

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80

Ingress protection rating of IP65 for dust and water

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements. DLC Product Code: PLC2WWSEFUB3

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

29W: 125W Metal Halide

Long-life, high-efficiency, surface-mount LEDs

Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.30A, 208V: 0.20A, 240V: 0.15A, 277V: 0.10A

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

120-277V selectable photocell that can be turned on and off.

The minimum starting temperature is -40°C (-40°F)

Suitable for use in up to 50°C (122°F)

Die-cast aluminum

Tempered glass

Formulated for high durability and long-lasting color

Mercury and UV free. RoHS-compliant components.

All values are typical (tolerance +/- 10%); 5 Yr Limited Warranty

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Wall mount
