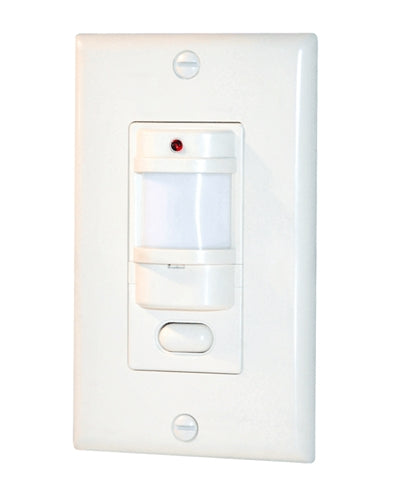

RAB LOS800W/120 800 Watts, 120 Volts Smart Switch Wall Occupancy Sensor, White
RAB LOS800W/120 800 Watts, 120 Volts Smart Switch Wall Occupancy Sensor, White
Regular price
Price:
$46.24
Regular price
Price:
Sale price
$46.24
Unit price
per
Ordering a large quantity?
Request a quote
Find your items based on model numbers and product specification. Photo might not represent the actual item or color. Often times, photo is used as a representation of a product family
description
Description
Fits decorator wall plates with only 1/2" protrusion. 120 volts. Gangable. Full 180 degrees view covers 1000 sq. ft Works with electronic ballasts. Can be wired in parallel. LED indicator, wallplate included. Can also be used as a ceiling sensor. Must have hot, common & ground wires in box.
Features & Benefits
- Full 180 degrees view
- LED Detection indicator
- Tough, vandal resistant lens
- Fits decorator wall plates
- Control panel cover only removable with wall plate to prevent tampering
- Manual Off/Auto switch
- Vandal Proof sensor for schools, gyms and high abuse areas
| UL Listing: | LOS800 & LOS1000: Indoor applications Smart Box & Tuff Dome: Wet locations |
| Compatibility: | Compatible with preset dimmers and electronic ballasts. Can be wired in parallel |
| Maximum Reliability: | Superb small movement sensitivity within 18 feet. LOS1000 has "ZAPS" - Zero Arc Point Switching to protect relay contacts lengthen ballast and sensor life. |
| Maximum Energy Savings: | Light only when you need it. No ON switch so lights are never left on by mistake. |
| Coverage Area: | 1000sf |
| Incandescent & Fluorescent Watts Switched: | 800 watts @ 120 volts |
| Ratings: | 6.7 amps |
| Power Consumption: | Negligible |
| Time Delay: | 8 seconds to 15 minutes |
| Manual Switch: | On - Manual / Off - Auto |
| Ambient Light Sensing: | n/a |
| Adjustments: | Time |
| Detection: | 180 degrees view covers 1000 sq. feet |
| Wiring: | Hot & common |
| Patents: | RAB sensor and fixture designs are protected under U.S. and International Intellectual Property laws. |
Download PDF Specification (English)Share your knowledge of this product. Be the first to write a review »
