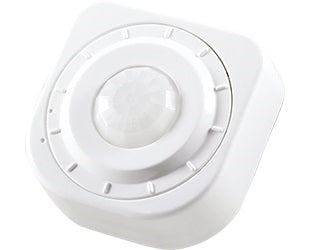

RAB LOSBAY800 Occupancy Sensor for BAYLED104, BAYLED78, AISLED78

Features and Benefits

• Fully compatible with BAYLED and AISLED fixtures
• Commercial grade

• Description:
  High Bay occupancy sensor for use with BAYLED, AISLED and RBAY fixtures. Includes offset bracket needed for some mounting situations.
• Warranty:
  5 years.

• Mounting Height:
  Up to 40 ft.
• Operating Temperature:
  -10°C to 70°C (14°F to 160°F).
• Relative Humidity:
  20-85%.

• Time Delay Setting:
  30 seconds to 30 minutes.

• Rating:
  120VAC thru 347VAC, 50/60 Hz.
• Maximum Load:
  120VAC 800VA, 6.67A, 277VAC 1200VA, 4.33A, 347VAC 1500VA, 4.32A.
• Photocell:
  40-2000LUX adjustable setting.
• Fluorescent Switching Capacity:
  6.67 Amps, 785 Watts CFL @ 120 Volts 0.98pF T5HO ballast; 4.33 Amps, 1175 Watts LED @ 277 Volts 0.98pF T5HO ballast.
• Power Consumption:
  2W @ 120V, 1W @ 277V, 0.8W @ 347V.

• Coverage Pattern:
  360° White Lens (installed) - 60 ft. diameter when mounted at 40 ft., Aisle Black Lens (included as option) - 60 ft. x 20 ft. wide.

• LED Switching Capacity:
  6.67 Amps, 640 Watts LED @ 120 Volts 0.8pF Driver; 4.33 Amps, 960 Watts LED @ 277 Volts 0.8pF Driver.
