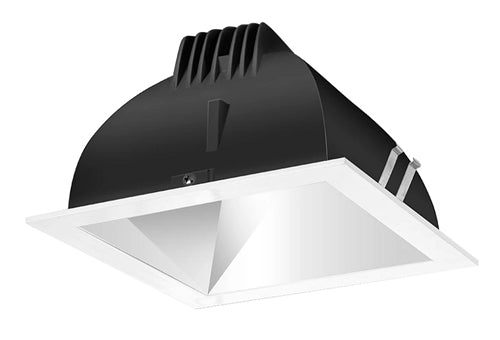

RAB NDLED6SD-50YN-W-W 6" New Construction Square Trim Module, 3500K, 80 CRI, 50 Degree Beam Spread, White Cone White Trim
RAB NDLED6SD-50YN-W-W 6" New Construction Square Trim Module, 3500K, 80 CRI, 50 Degree Beam Spread, White Cone White Trim
Regular price
Price:
$170.83
Regular price
Price:
Sale price
$170.83
Unit price
per
Ordering a large quantity?Request a quote
description
| Compliance | |
|
UL Listed
|
Suitable for wet
locations covered ceiling
|
|
Energy Star Approved
|
ENERGY STAR® Version 2.0
Certified
|
|
Construction
|
|
|
Trim Component
|
This component must be
ordered with New Construction Square Rough-In in order to make a complete
fixture.
|
|
Housing
|
Professional-grade,
die-cast aluminum construction
|
|
Trim Ring
|
White powder coated die
cast trim ring
|
|
Trim Cone
|
White square trim cone
|
|
Drop Ceiling Installation
|
NDLED can be installed in
drop ceiling tiles when using optional c-channel bars and following local
construction codes
|
|
Aperture Size
|
6" Trim Module
|
|
Easy Installation
|
The EZ-Connector makes
installation easy
|
|
Junction Box
|
Integral junction box
with wiring capacity for
|
|
Air Tight
|
Housing certified Air
Tight as per ASTM E283
|
|
Electrical
|
|
|
Dimming Driver
|
0 - 10V (at 120-277V),
TRIAC and ELV (at 120V only). See dimmer compatibility guide here.
|
|
Dimming
|
Dimmable. Requires
rough-in with dimming driver.
|
|
Optical
|
|
|
Optics
|
50° beam spread with
specular thermoplastic optics and Nanostructure lens technology for smooth
light output and high efficiency
|
|
LED
Characteristics
|
|
|
Color Consistency
|
3-step MacAdam Ellipse
binning to achieve consistent fixture-to-fixture color
|
|
Other
|
|
|
Warranty
|
5-year limited warranty
|
Download PDF Specification
