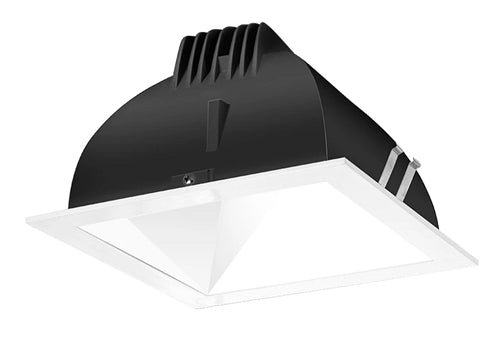

RAB NDLED6SD-50YYHC-W-W 6" New Construction Square Trim Module, 2700K, 90 CRI, 50 Degree Beam Spread, White Cone White Trim

PRODUCT SPECIFICATIONS
Compliance
UL Listed: Suitable for wet locations covered ceiling
ENERGY STAR V2.0: This product is ENERGY STAR® Version 2.0 Certified.

Construction
Trim Component: This component must be ordered with New Construction Square Rough-In in order to make a complete fixture.
Housing: Professional-grade, die-cast aluminum construction
Trim Ring: White powder coated die cast trim ring
Trim Cone: White square trim cone
Drop Ceiling Installation: NDLED can be installed in drop ceiling tiles when using optional c-channel bars and following local construction codes
Aperture Size: 6" Trim Module
Easy Installation: The EZ-Connector makes installation easy
Junction Box: Integral junction box with wiring capacity for Min 90°C supply conductors
4 in 4 out
Air Tight: Housing certified Air Tight as per ASTM E283

Electrical
Dimming Driver: 0 - 10V (at 120-277V), TRIAC and ELV (at 120V only).
Dimming: Dimmable. Requires rough-in with dimming driver.

Optical
Optics: 50° beam spread with specular thermoplasic optics and Nanostructure lens technology for smooth light output and high efficiency

LED Characteristics
Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Other
Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA).
