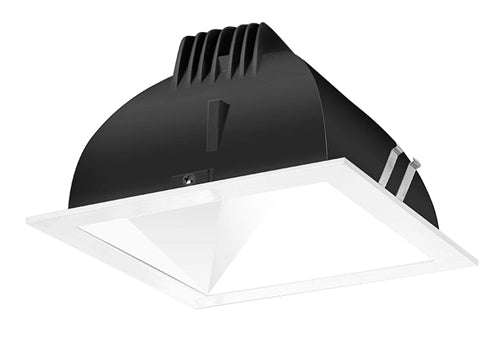

RAB NDLED6SD-80YN-W-W 6" New Construction Square Trim Module, 3500K, 90 CRI, 80 Degree Beam Spread, White Cone White Trim
RAB NDLED6SD-80YN-W-W 6" New Construction Square Trim Module, 3500K, 90 CRI, 80 Degree Beam Spread, White Cone White Trim
Regular price
Price:
$163.80
Regular price
Price:
Sale price
$163.80
Unit price
per
MODEL: RAB-NDLED6SD-80YN-W-W
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
Compliance
Compliance
UL Listed
Suitable for wet locations covered ceiling
ENERGY STAR V2.0
This product is ENERGY STAR Version 2.0 Certified.
Construction
Trim Component
This component must be ordered with New Construction Square Rough-In in order to make a complete fixture.
Housing
Professional-grade, die-cast aluminum construction
Trim Ring
White powder coated die cast trim ring
Trim Cone
White square trim cone
Drop Ceiling Installation
NDLED can be installed in drop ceiling tiles when using optional c-channel bars and following local construction codes
Aperture Size
6" Trim Module
Easy Installation
The EZ-Connector makes installation easy
Junction Box
Integral junction box with wiring capacity for
Min 90°C supply conductors
4 in 4 out
Air Tight
Housing certified Air Tight as per ASTM E283
Electrical
Dimming Driver
0 - 10V (at 120-277V), TRIAC and ELV (at 120V only). See dimmer compatibility guide here.
Dimming
Dimmable. Requires rough-in with dimming driver.
Optical
Optics
80° beam spread with specular thermoplastic optics and Nanostructure lens technology for smooth light output and high efficiency
LED Characteristics
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish.
Suitable for wet locations covered ceiling
ENERGY STAR V2.0
This product is ENERGY STAR Version 2.0 Certified.
Construction
Trim Component
This component must be ordered with New Construction Square Rough-In in order to make a complete fixture.
Housing
Professional-grade, die-cast aluminum construction
Trim Ring
White powder coated die cast trim ring
Trim Cone
White square trim cone
Drop Ceiling Installation
NDLED can be installed in drop ceiling tiles when using optional c-channel bars and following local construction codes
Aperture Size
6" Trim Module
Easy Installation
The EZ-Connector makes installation easy
Junction Box
Integral junction box with wiring capacity for
Min 90°C supply conductors
4 in 4 out
Air Tight
Housing certified Air Tight as per ASTM E283
Electrical
Dimming Driver
0 - 10V (at 120-277V), TRIAC and ELV (at 120V only). See dimmer compatibility guide here.
Dimming
Dimmable. Requires rough-in with dimming driver.
Optical
Optics
80° beam spread with specular thermoplastic optics and Nanostructure lens technology for smooth light output and high efficiency
LED Characteristics
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish.
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
