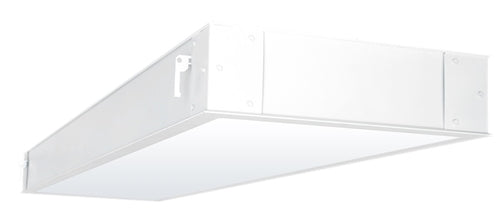

RAB PANEL1X4-34YN/D10 1' x 4' Recessed LED Panel, 34 Watts, 3500K Color Temperature, 85 CRI, 120V-277V, White Finish, Dimmable

Description
1' x 4' LED panel lights provide smooth and uniform light edge-to-edge for a clean, modern look. For use in drop ceilings or drywall using the optional recessed mounting kit.

Features & Benefits

• Up to 60% savings on energy costs
• High-reflectance (91%) powder coat applied post fabrication for a more durable finish
• Ultra-smooth diffusion lens creates uniform light, edge to edge, for evenly lit spaces
• 100,000-hour LED Lifespan
• 5-year warranty

Model:	PANEL1X4-34YN/D10
PANEL1X4-34 with Dimmable Driver:	Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
UL Listing:	Suitable for damp locations. Recommended for indoor use only.
IC Rating:	Suitable for insulated ceilings.
LEDs:	Long-life, High efficiency, micro-power, surface mount LEDs; binned and mixed for uniform light output and color.
Lifespan:	100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
Driver:	Constant Current, Class 2, 100-277V, 50/60Hz, 4kV Surge Protection, 700mA, 100-277V: 0.4A, Power Factor 99.4%
THD:	8% at 120V, 9.3% at 277V
Lens:	High-transmission acrylic lens with excellent distribution and uniformity.
Color Consistency:	3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
Housing:	Lightweight housing is constructed of extruded aluminum.
Installation:	Modular splice box/driver compartment for quick installation. Integral Tee-grid ceiling clips make installation easy and secure.
Finish:	Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals.
IESNA LM-79 & LM-80 Testing:	RAB LED luminaries have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.
California Title 24:	PANEL1x4-34/D10 complies with 2013 California Title 24 building and electrical codes as a commercial indoor fixture for general spaces when used with a vacancy sensor and 0-10V dimming control. Select a vacancy sensor using catalog number LVS800. 0-10V dimmer provided by others.
Green Technology:	Mercury and UV free, and RoHS compliant. Polyester powder coat finish formulated without the use of VOC or toxic heavy metals.
Country of Origin:	Designed by RAB in New Jersey and assembled in the USA by RAB's IBEW Local 3 workers.
Buy American Act Compliant:	This product is a COTS item manufactured in the United States, and is compliant with the Buy American Act.
Recovery Act (ARRA) Compliant:	This product complies with the 52.225-21 "Required Use of American Iron, Steel, and Manufactured Goods-- Buy American Act-- Construction Materials (October 2010).
Trade Agreements Act Compliant:	This product is a COTS item manufactured in the United States, and is compliant with the Trade Agreements Act.
GSA Schedule:	Suitable in accordance with FAR Subpart 25.4.
