RAB PANEL2X2-34Y 2' x 2' Recessed LED Panel, 34 Watts, 3000K Color Temperature, 83 CRI, 120V-277V, White Finish

RAB PANEL2X2-34Y 2' x 2' Recessed LED Panel, 34 Watts, 3000K Color Temperature, 83 CRI, 120V-277V, White Finish

Price: $171.22
Price: $171.22

MODEL: RAB-PANEL2X2-34Y
Add To Wishlist
Request a Quote
Ordering a Large Quantity? Request a quote
View full details

description

Description

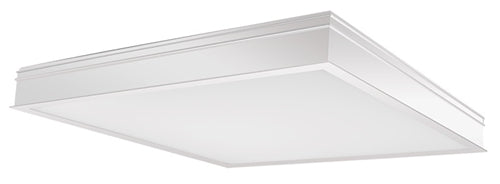

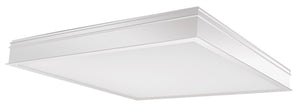

  • 2' x 2' LED panel lights provide smooth and uniform light edge-to-edge for a clean, modern look. For use in drop ceilings or drywall using the optional recessed mounting kit.
Features & Benefits
  • High-transmission acrylic lens provides excellent distribution and uniformity
  • UL Listed for damp locations
  • 5-year warranty

Other
  • UL Listed:
    Suitable for damp locations. Recommended for indoor use only.
  • California Title 24:
    See PANEL2x2-34/D10 for a 2013 California Title 24 compliant product. Any additional component requirements will be listed in the Title 24 section under technical specifications on the product page.
  • Warranty:
    RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish.
Construction
  • IC Rating:
    Suitable for insulated ceilings.
  • Lens:
    High-transmission acrylic lens with excellent distribution and uniformity.
  • Housing:
    Lightweight housing is constructed of extruded aluminum.
  • Finish:
    Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals.
  • Quick and Easy Installation:
    Modular splice box/driver compartment available for quick installation. Integral Tee grid clips make installation easy and secure.
  • Green Technology:
    Mercury and UV free, and RoHS compliant.
LED Characteristics
  • Lifespan:
    100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
  • LEDs:
    Long-life, High efficiency, micro-power, surface mount LEDs; binned and mixed for uniform light output and color.
  • Color Consistency:
    3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
Electrical
  • Driver:
    Constant Current, Class 2, 100-277V, 50/60Hz, 4kV Surge Protection, 700mA, 100-277V 0.4A, Power factor 99.3%.
  • THD:
    6.3% at 120V, 9.2% at 277V
Listings
  • DLC Listed:
    This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
  • IESNA LM-79 & LM-80 Testing:
    RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.
