RAB PANEL2X2-52N/D10 2' x 2' Recessed LED Panel, 52 Watts, 4000K Color Temperature, 83 CRI, 120V-277V, White Finish, Dimmable
RAB PANEL2X2-52N/D10 2' x 2' Recessed LED Panel, 52 Watts, 4000K Color Temperature, 83 CRI, 120V-277V, White Finish, Dimmable
Regular price
Price:
$221.02
Regular price
Price:
Sale price
$221.02
Unit price
per
Ordering a Large Quantity?
Request a quote
description

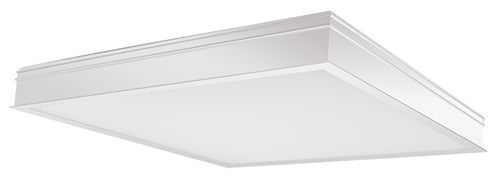

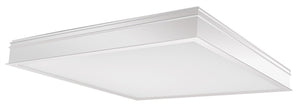

2' x 2' LED panel lights provide smooth and uniform light edge-to-edge for a clean, modern look. For use in drop ceilings or drywall using the optional recessed mounting kit.
High-transmission acrylic lens provides excellent distribution and uniformity UL Listed for damp locations 5-year warranty
Other
-
PANEL2X2-52 with Dimmable Driver:
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%. -
UL Listed:
Suitable for damp locations. Recommended for indoor use only. -
California Title 24:
PANEL2x2-52/D10 complies with 2013 California Title 24 building and electrical codes as a commercial indoor fixture for general spaces when used with a vacancy sensor and 0-10V dimming control. Select a vacancy sensor using catalog number LVS800. 0-10V dimmer provided by others. -
Warranty:
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. -
Country of Origin:
Designed by RAB in New Jersey and assembled in the USA by RAB's IBEW Local 3 workers. -
Buy American Act Compliant:
This product is a COTS item manufactured in the United States, and is compliant with the Buy American Act. -
Recovery Act (ARRA) Compliant:
This product complies with the 52.225-21 "Required Use of American Iron, Steel, and Manufactured Goods-- Buy American Act-- Construction Materials (October 2010). -
Trade Agreements Act Compliant:
This product is a COTS item manufactured in the United States, and is compliant with the Trade Agreements Act. -
GSA Schedule:
Suitable in accordance with FAR Subpart 25.4.
-
IC Rating:
Suitable for insulated ceilings. -
Lens:
High-transmission acrylic lens with excellent distribution and uniformity.
-
Housing:
Lightweight housing is constructed of extruded aluminum. -
Finish:
Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals. -
Quick and Easy Installation:
Modular splice box/driver compartment available for quick installation. Integral Tee grid clips make installation easy and secure. -
Green Technology:
Mercury and UV free, and RoHS compliant.
-
Lifespan:
100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations. -
LEDs:
Long-life, High efficiency, micro-power, surface mount LEDs; binned and mixed for uniform light output and color. -
Color Consistency:
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
-
Driver:
Constant Current, Class 2, 100-277V, 50/60Hz, 4KV Surge Protection, 1050mA, 100-277V 0.8A, Power factor 99.3%, 0-10V Dimming 10%-100%. -
THD:
7.1% at 120V, 7.1% at 277V
-
IESNA LM-79 & LM-80 Testing:
RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.
Download PDF Specification (English)Share your knowledge of this product. Be the first to write a review »
