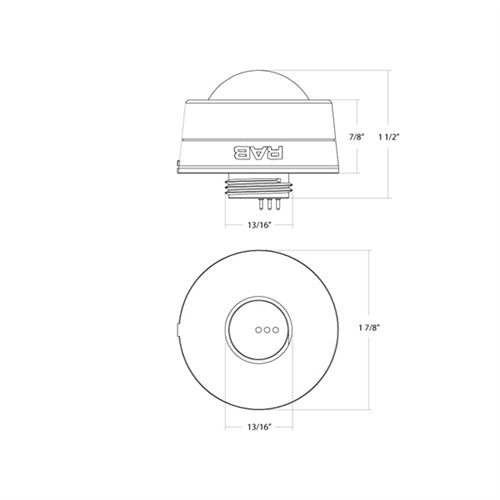

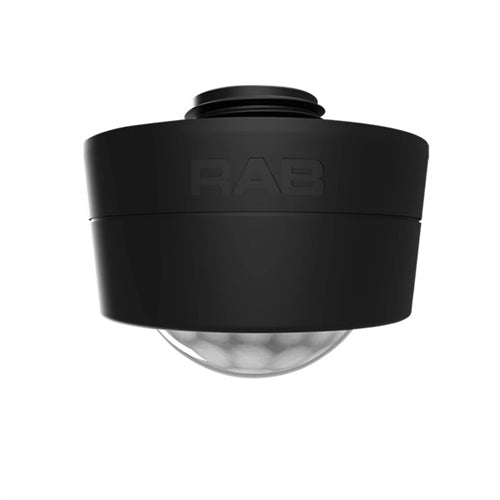

RAB PIR20B Low Voltage Occupancy Sensor
RAB PIR20B Low Voltage Occupancy Sensor
Regular price
Price:
$31.68
Regular price
Price:
Sale price
$31.68
Unit price
per
Ordering a Large Quantity?
Request a quote
description
| Performance | |
|
Product Type
|
Low Voltage Occupancy
Sensor
|
|
Description
|
Line voltage screw-in
sensor, motion detection and daylight sensing.
|
|
L70 Lifespan
|
50,000-Hour LED lifespan
based on IES LM-70 results
|
|
Electrical
|
|
|
Input Voltage
|
12V
|
|
Operating Frequency
|
50/60Hz
|
|
Input Current @ 120V (mA)
|
30mA
|
|
Operating Temperature
|
-4°F to 140°F (-20°C to
60°C)
|
|
Sensor
Settings
|
|
|
Sensor Connection Type
|
Pogo pin
|
|
Max Mounting Height
|
20 ft
|
|
Detection Range
|
20 ft diameter at 9 ft
mounting height
|
|
Sensor Technology
|
Passive Infrared (PIR)
|
|
Default Setting
|
Motion Sensitivity: High
|
| Brightness when triggered : 100% | |
| Hold time: 20 minutes | |
| Standby to dim: 20% | |
| Standby time: 1 minute | |
| When vacant: Off | |
| Daylight: Disabled | |
|
Adjustable Sensor
Settings?
|
Yes, using the MSR1
Remote (sold separately)
|
| Standby to dim: 10%/20%/30%/50% | |
|
Daylight Threshold
|
2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
|
|
Construction
|
|
|
Shape
|
Round
|
|
Finish
|
Black
|
|
Enclosure Material
|
Plastic
|
|
Compliance
|
|
|
Environment
|
Suitable for use indoors
and outdoors in dry, damp, or wet environments.
|
|
IP Rating
|
IP66
|
|
Certification Model
Number
|
PIR20B
|
|
California Title 20
Compliant
|
No
|
|
California Title 24 JA8
Compliant
|
No
|
|
California Energy
Commission (CEC) Status
|
Lawful for Sales in
California
|
|
RoHS
|
Mercury and UV free.
RoHS-compliant components.
|
|
FCC
|
Complies with Part 15 of
the FCC Rules
|
|
Other
|
|
|
Compatible Products
|
|
|
|
RBAY17 Field-Adjustable High Bay |
| VAN17 3-Way Adjustable Canopy | |
| PARK34 Field-Adjustable Garage Light | |
| Requires RAAS; RAASB: | |
| SHARK Field-Adjustable Linear Washdown | |
| SEAL Field-Adjustable Washdown | |
| GUS 17 | Linear wrap |
| SR Field-Adjustable Strip | Linear strip |
|
Compatible Accessories
|
|
|
|
Right angle arm support |
|
|
RAASB |
|
|
Right angle arm support |
|
Warranty
|
RAB warrants that our LED
products will be free from defects in materials and workmanship for a period
of five (5) years from the date of delivery to the end user, including
coverage of light output, color stability, driver performance and fixture
finish. RAB's warranty is subject to all terms and conditions found
at rablighting.com/warranty.
|
|
Buy American Act
Compliance
|
RAB values USA
manufacturing! Upon request, RAB may be able to manufacture this product to
be compliant with the Buy American Act (BAA). Please contact customer service
to request a quote for the product to be made BAA compliant.
|
