RAB PLED2X13YW 2x13W LED Pendant Mount, 3000K Color Temperature (Warm), Standard Operation, White Finish

Description

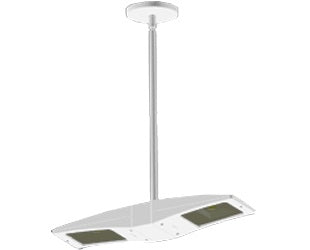

The PLED is a high performance LED downlight. Pendant mount with hang-straight and 6", 12" and 18" stems included. Stems can be combined up to 36" max length.

Features and Benefits

• Die cast aluminum lens frame with tempered glass and double gasketing
• Fully Shielded, Full Cutoff Optics
• LED Light Engine life delivers 70% of rated lumens at 100,000 hours
• 5-year warranty

• UL Listing:
  Suitable for Wet Locations.
• IESNA LM-79 & IESNA LM-80 Testing:
  RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and 80, and have received the Department of Energy "Lighting Facts" label.

• Lifespan:
  100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• Color Consistency:
  7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
• Color Stability:
  LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
• Color Uniformity:
  RAB's range of CCT (Correlated color temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2008.
• Color Temperature (Nominal CCT):
  5000K
• Color Accuracy:
  69 CRI

• Mounting:

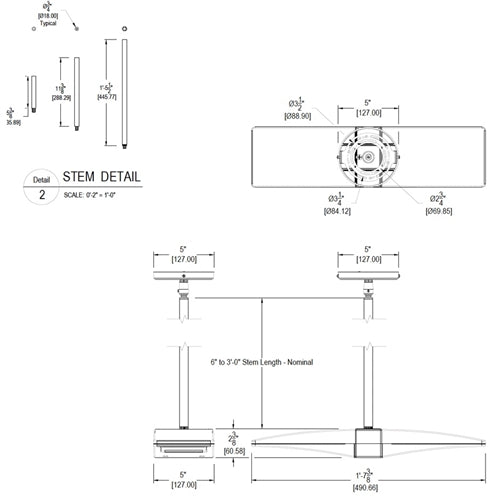

  3 mounting stems included. 6", 12" and 18" can be combined to achieve a maximum length of 36". 42" of wire supplied. The pendants thread into a hang-straight, leveling the fixture. Pendant outside diameter is 3/4". Threads are 1/4". Circular canopy included.
• Thermal Management:
  Cast aluminum Thermal Management system for optimal heat sinking. Designed for cool operation, most efficient output and maximum LED life by minimizing LED junction temperature.
• Housing:
  Precision die cast aluminum housing and lens framing.
• Finish:
  Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals.
• Green Technology:
  RAB LEDs are Mercury and UV free.
• Cold Weather Starting:
  The minimum starting temperature is -40°F/-40°C.
• Ambient Temperature:
  Suitable for use in 40°C (104°F) ambient temperatures.

• Driver:
  Multi-chip 2x13W high output long life LED Driver Constant Current, Class 2 100V - 277V, 50/60 Hz.
• Surge Protection:
  4KV

• Lumen Maintenance:
  The LED will deliver 70% of its initial lumens at 100,000 hours of operation.
• Fixture Efficacy:
  68 Lumens per Watt

• Patents:
  The design of the PLED is protected by U.S. Pat. D608,040, D615,689 and patents pending in Canada, China and Taiwan.
• Warranty:
  RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish.
• Equivalency:
  The PLED2X13 is Equivalent in delivered lumens to a 42W CFL or 70W Metal Halide Pendant.
• HID Replacement Range:
  The PLED2X13 can be used to replace 70-100W Metal Halide Pendants based on delivered lumens.
• Country of Origin:
  Designed by RAB in New Jersey and assembled in the USA by RAB's IBEW Local 3 workers.
• Buy American Act Compliant:
  This product is a COTS item manufactured in the United States, and is compliant with the Buy American Act.
• Recovery Act (ARRA) Compliant:
  This product complies with the 52.225-21 "Required Use of American Iron, Steel, and Manufactured Goods-- Buy American Act-- Construction Materials (October 2010).
• Trade Agreements Act Compliant:
  This product is a COTS item manufactured in the United States, and is compliant with the Trade Agreements Act.
• GSA Schedule:
  Suitable in accordance with FAR Subpart 25.4
