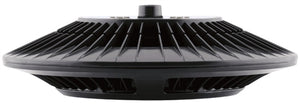

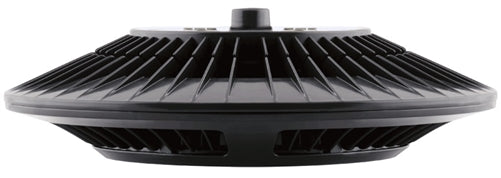

RAB PLED78N/D10 78W LED Pendant Light, 4000K (Neutral), No Photocell, 4000 Lumens, 82 CRI, 120-277V, Dimmable Operation, Not DLC Listed, Bronze Finish

Description

LED pendant mounted fixture with precision optics for smooth and uniform distribution. Ideal for retail settings, workspace lighting and other applications requiring a high output commercial grade downlight.

Features and Benefits

• Precision optics deliver uniform light distribution
• 100,000-hour LED lifespan
• 5-year warranty

• UL Listing:
  Suitable for wet locations.
• Dark Sky Approved:
  The International Dark Sky Association has approved this product as a full cutoff, fully shielded luminaire.
• IESNA LM-79 & LM-80 Testing:
  RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.

• Lifespan:
  100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• LEDs:
  6x13W high-output, long-life LEDs.
• Color Consistency:
  7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
• Color Stability:
  LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
• Color Uniformity:
  RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2011.

• Drivers:
  3x26W Driver, Constant Current, Class 2, 100V-277V, 50/60 Hz, 6kv Surge Protection, 720mA, 100-277VAC 0.4 Amps., Power Factor 99.4%.
• THD:
  8.0% at 120V, 10.5% at 277V

• Cold Weather Starting:
  Minimum starting temperature is -40°F/-40°C.
• Ambient Temperature:
  Suitable for use in 35°C (95°F) ambient temperatures.
• Thermal Management:
  Optimized using computational fluid dynamics software to ensure long LED and driver lifespan.
• Housing:
  Precision die-cast aluminum housing and lens frame.
• Lens:
  Clear tempered glass lens.
• Gaskets:
  High-temperature silicone.
• Finish:
  Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals.

• PLED78 with Dimmable Driver:
  Driver includes dimming control for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 5%.
• Green Technology:
  Mercury and UV Free, and RoHS compliant.
• California Title 24:
  PLED78/D10 complies with 2013 California Title 24 building and electrical codes as a commercial indoor fixture for general spaces when used with a vacancy sensor and 0-10V dimming control. Select a vacancy sensor using catalog number LVS800. 0-10V dimmer provided by others.
• Patents:
  The design of PLED78 is protected by patents pending in US, Canada, China, Taiwan and Mexico.
• Country of Origin:
  Designed by RAB in New Jersey and assembled in the USA by RAB's IBEW Local 3 workers.
• Buy American Act Compliant:
  This product is a COTS item manufactured in the United States, and is compliant with the Buy American Act.
• Recovery Act (ARRA) Complaint:
  This product complies with the 52.225-21 "Required Use of American Iron, Steel, and Manufactured Goods-- Buy American Act-- Construction Materials (October 2010).
• Trade Agreements Act Compliant:
  This product is a COTS item manufactured in the United States, and is compliant with the Trade Agreements Act.
• GSA Schedule:
  Suitable in accordance with FAR Subpart 25.4.
