RAB PLED78YW 78W LED Pendant Light, 3000K (Warm), No Photocell, 6235 Lumens, 82 CRI, 120-277V, Standard Operation, Not DLC Listed, White Finish

Description

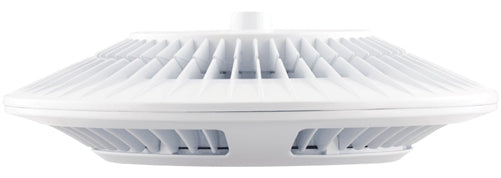

LED pendant mounted fixture with precision optics for smooth and uniform distribution. Ideal for retail settings, workspace lighting and other applications requiring a high output commercial grade downlight.

Features and Benefits

• Precision optics deliver uniform light distribution
• 100,000-hour LED lifespan
• 5-year warranty

• UL Listing:
  Suitable for wet locations.
• Dark Sky Approved:
  The International Dark Sky Association has approved this product as a full cutoff, fully shielded luminaire.
• IESNA LM-79 & LM-80 Testing:
  RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.

• Lifespan:
  100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• LEDs:
  6x13W high-output, long-life LEDs.
• Color Consistency:
  7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
• Color Stability:
  LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
• Color Uniformity:
  RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2011.

• Drivers:
  3x26W Driver, Constant Current, Class 2, 100V-277V, 50/60 Hz, 6kv Surge Protection, 720mA, 100-277VAC 0.4 Amps., Power Factor 99.4%.
• THD:
  8.0% at 120V, 10.5% at 277V

• Cold Weather Starting:
  Minimum starting temperature is -40°F/-40°C.
• Ambient Temperature:
  Suitable for use in 35°C (95°F) ambient temperatures.
• Thermal Management:
  Optimized using computational fluid dynamics software to ensure long LED and driver lifespan.
• Housing:
  Precision die-cast aluminum housing and lens frame.
• Lens:
  Clear tempered glass lens.
• Gaskets:
  High-temperature silicone.
• Finish:
  Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals.

• Green Technology:
  Mercury and UV Free, and RoHS compliant.
• California Title 24:
  See PLED78/D10 for a 2013 California Title 24 compliant product. Any additional component requirements will be listed in the Title 24 section under technical specifications on the product page.
• Patents:
  The design of PLED78 is protected by patents pending in US, Canada, China, Taiwan and Mexico.
